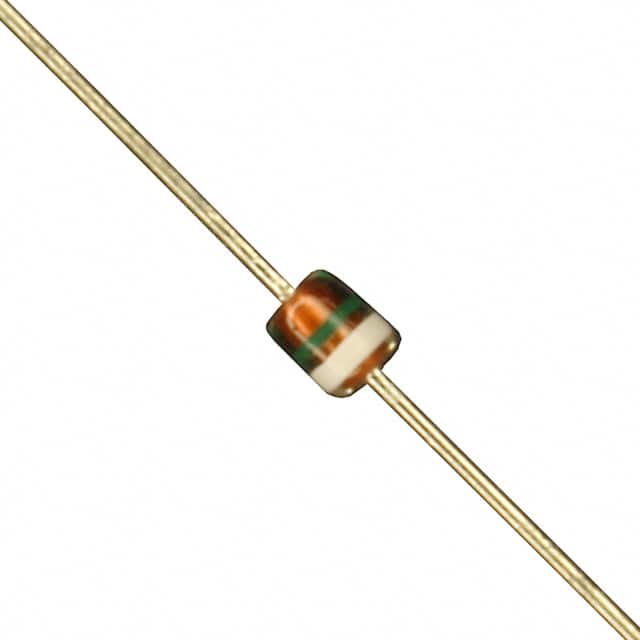

| Part Number | MA2C18500E | MA2C18800E | MA2C19500E | MA2C16500E |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V | 35 V | 35 V |
| Current - Average Rectified (Io) | 200mA | 200mA | 100mA | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA | 1.2 V @ 200 mA | 1.2 V @ 100 mA | 1.2 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | 60 ns | 200 µs | 10 ns |
| Current - Reverse Leakage @ Vr | 200 nA @ 200 V | 200 nA @ 200 V | 10 nA @ 30 V | 100 nA @ 30 V |
| Capacitance @ Vr, F | - | 1pF @ 0V, 1MHz | 4pF @ 0V, 1MHz | 2pF @ 0V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO34-A1 | DO34-A1 | DO34-A1 | DO34-A1 |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 200°C (Max) | 200°C (Max) |
