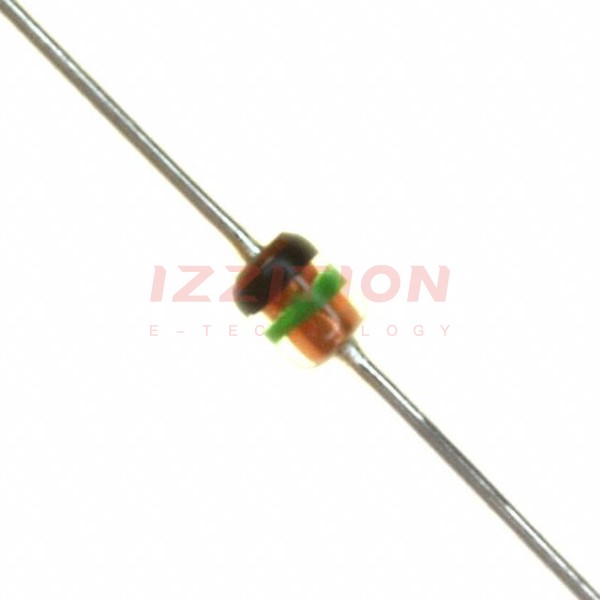

| Part Number | MA2C17900E | MA2C17800E |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V | 40 V |
| Current - Average Rectified (Io) | 200mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 20 ns | 20 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 75 V | 500 nA @ 35 V |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz | 4pF @ 0V, 1MHz |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO34-A1 | DO34-A1 |
| Operating Temperature - Junction | 200°C (Max) | 200°C (Max) |
