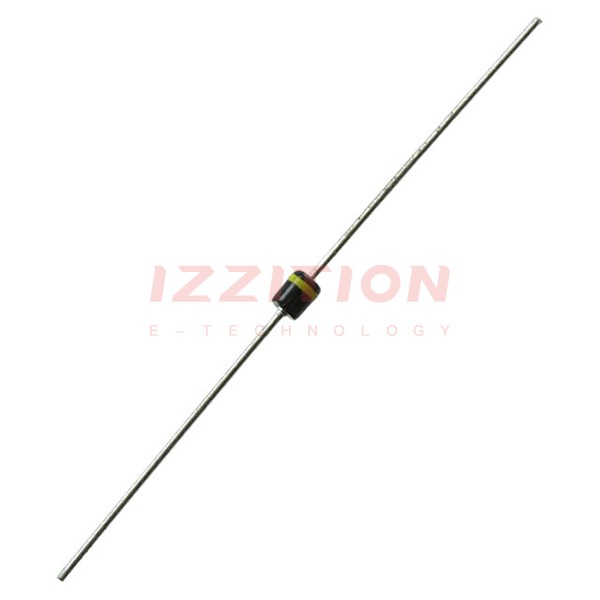

| Part Number | MA2C029TAF | MA2C029WAF | MA2C029QAF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 6 V | 6 V | 6 V |
| Current - Average Rectified (Io) | 70mA (DC) | 100mA (DC) | 50mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.92 V @ 3 mA | 1.28 V @ 3 mA | 2.4 V @ 3 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 1 µA @ 6 V | 1 µA @ 6 V | 1 µA @ 6 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial | DO-204AG, DO-34, Axial |
| Supplier Device Package | DO34-A1 | DO34-A1 | DO34-A1 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
