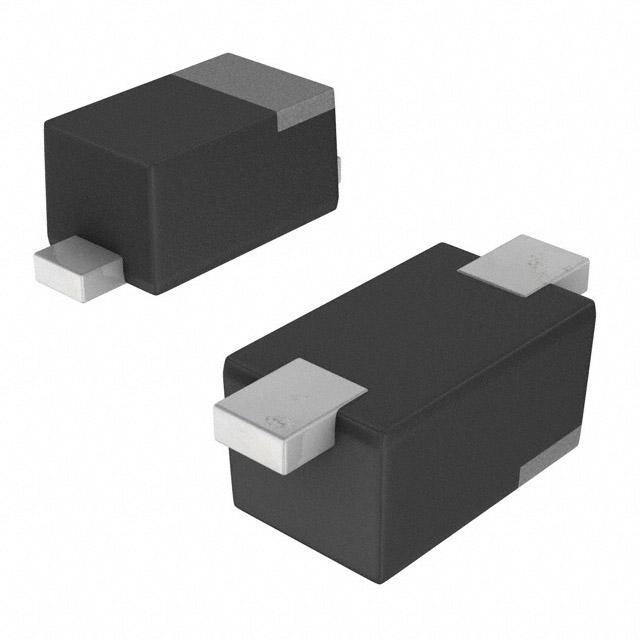

| Part Number | MA27V1900L | MA27V0900L | MA27V1100L | MA27V1200L | MA27V1300L | MA27V1500L | MA27V1600L | MA27V1800L |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance @ Vr, F | 1.28pF @ 3V, 1MHz | 9.2pF @ 3V, 1MHz | 1.34pF @ 4V, 1MHz | 2.14pF @ 4V, 1MHz | 5.81pF @ 3V, 1MHz | 3.23pF @ 2.5V, 1MHz | 8.37pF @ 3V, 1MHz | 1.41pF @ 3V, 1MHz |
| Capacitance Ratio | 2.03 | 1.87 | 2.34 | 1.9 | 2.23 | 2.55 | 2.35 | 2.21 |
| Capacitance Ratio Condition | C1/C3 | C1/C3 | C1/C4 | C1/C4 | C1/C3 | C0.5/C2.5 | C1/C3 | C1/C3 |
| Voltage - Peak Reverse (Max) | 6 V | 6 V | 8 V | 8 V | 12 V | 6 V | 6 V | 6 V |
| Diode Type | Single | Single | Single | Single | Single | Single | Single | Single |
| Q @ Vr, F | - | - | - | - | - | - | - | - |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | SSSMini2-F1 | SSSMini2-F1 | SSSMini2-F1 | SSSMini2-F1 | SSSMini2-F1 | SSSMini2-F1 | SSSMini2-F1 | SSSMini2-F1 |
