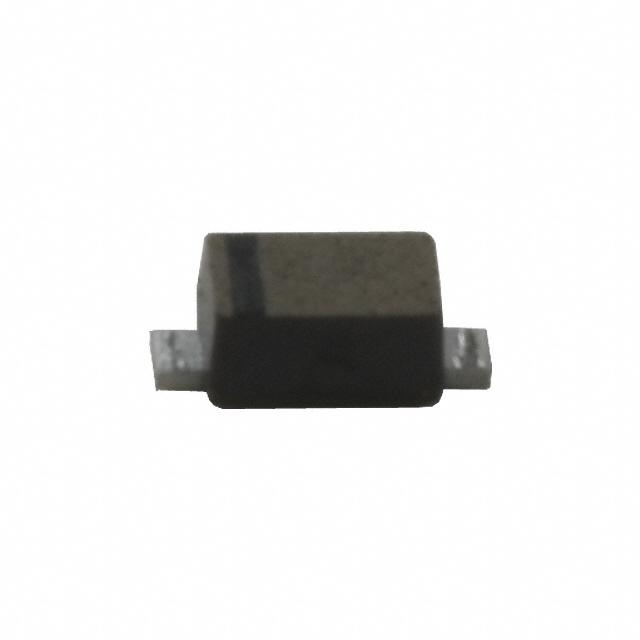

| Part Number | MA27D2900L | MA2SD2900L | MA27D290GL | MA27D2700L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 20 V |
| Current - Average Rectified (Io) | 100mA | 100mA | 100mA | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 100 mA | 420 mV @ 100 mA | 420 mV @ 100 mA | 580 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns | 1 ns | 1 ns | 1 ns |
| Current - Reverse Leakage @ Vr | 120 µA @ 30 V | 120 µA @ 30 V | 120 µA @ 30 V | 300 nA @ 10 V |
| Capacitance @ Vr, F | 11pF @ 0V, 1MHz | 11pF @ 0V, 1MHz | 9pF @ 0V, 1MHz | 11pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | SC-79, SOD-523 | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | SSSMini2-F2 | SSMini2-F1 | SSSMini2-F3 | SSSMini2-F2 |
| Operating Temperature - Junction | 125°C (Max) | 125°C (Max) | 125°C (Max) | 150°C (Max) |
