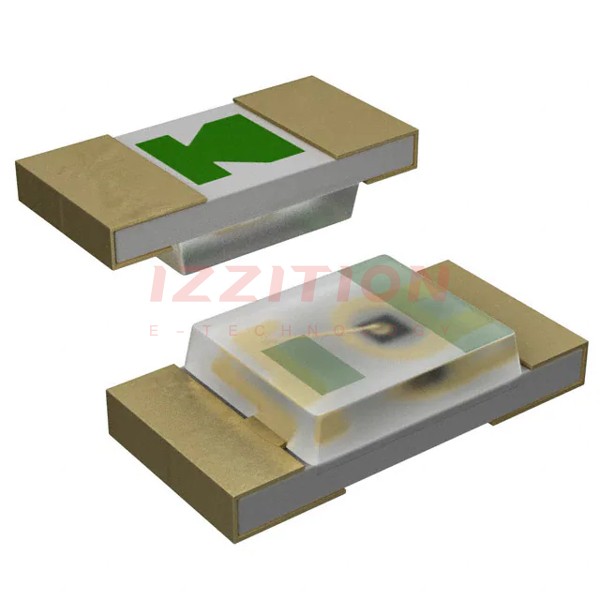

| Part Number | LNJ926W8CRA | LNJ936W8CRA | LNJ626W8CRA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Blue | Blue | Green |
| Configuration | Standard | Standard | Standard |
| Lens Color | - | - | - |
| Lens Transparency | - | - | - |
| Millicandela Rating | 11.5mcd | 14mcd | 40mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm | 1.60mm x 0.80mm | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.9V | 2.9V | 2.9V |
| Current - Test | 5mA | 5mA | 5mA |
| Viewing Angle | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 470nm | 472nm | 527nm |
| Wavelength - Peak | 465nm | 465nm | 520nm |
| Features | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | UTSS Type | - | UTSS Type |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.42mm | 0.25mm | 0.42mm |
