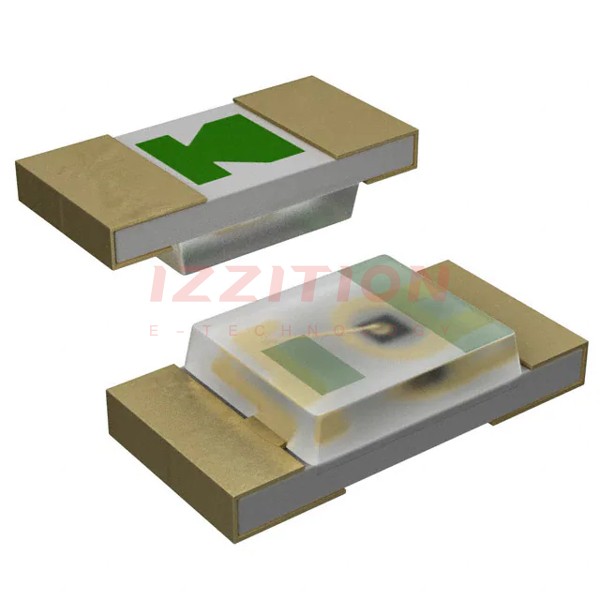

| Part Number | LNJ826W83RA | LNJ836W83RA | LNJ826W86RA | LNJ326W83RA | LNJ426W83RA |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Orange | Orange | Orange | Green | Amber |
| Configuration | Standard | Standard | Standard | Standard | Standard |
| Lens Color | - | - | - | - | - |
| Lens Transparency | - | - | - | - | - |
| Millicandela Rating | 19mcd | 17.5mcd | 16.9mcd | 17mcd | 35mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm | 1.60mm x 0.80mm | 1.10mm x 0.80mm | 1.10mm x 0.80mm | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.9V | 1.95V | 1.92V | 2.05V | 2.05V |
| Current - Test | 5mA | 5mA | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 620nm | 620nm | 605nm | 572nm | 589nm |
| Wavelength - Peak | 630nm | 630nm | 610nm | 575nm | 595nm |
| Features | - | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | UTSS Type | - | UTSS Type | Chip LED | UTSS Type |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.42mm | 0.25mm | 0.42mm | 0.42mm | 0.42mm |
