Please send RFQ , we will respond immediately.

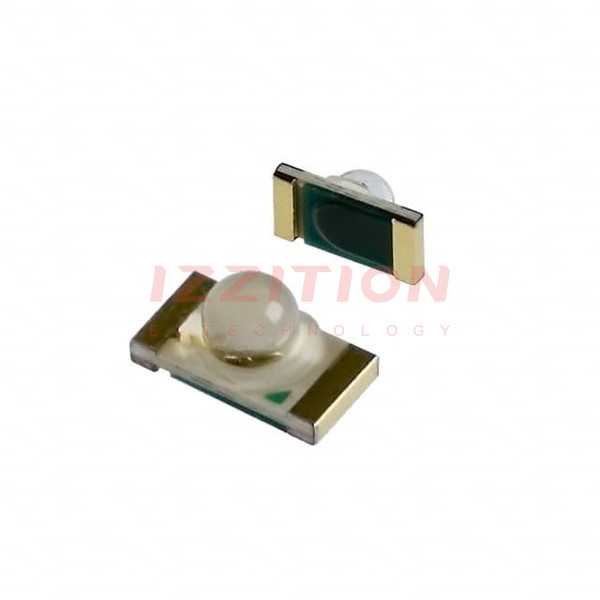

| Part Number | LNJ818C8SRA | LNJ818C8SRU | LNJ816C8SRA | LNJ818C83RA | LNJ818C87RA | LNJ818C88RA | LNJ818C8DRA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Orange | Orange | Orange | Orange | Orange | Orange | Orange |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | - | - | - | - | - | - | - |
| Lens Transparency | - | - | - | - | - | - | - |
| Millicandela Rating | 5mcd | 5mcd | 1.5mcd | 160mcd | 100mcd | 33mcd | 9mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Flat Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 1.42mm Dia | 1.42mm Dia | 1.70mm Dia | 1.42mm Dia | 1.42mm Dia | 1.42mm Dia | 1.42mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.93V | 1.93V | 1.93V | 2.03V | 1.95V | 1.9V | 1.93V |
| Current - Test | 20mA | 10mA | 10mA | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount, Bottom Entry | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - | - | - | - | - |
| Wavelength - Peak | 610nm | 610nm | 610nm | 630nm | 615nm | 620nm | 630nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | Dome Lens Type | - | Microlens Type | Dome Lens Type | Dome Lens Type | - | Dome Lens Type |
| Size / Dimension | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W |
| Height (Max) | 1.62mm | 1.62mm | 1.10mm | 1.62mm | 1.62mm | 1.60mm | 1.62mm |
