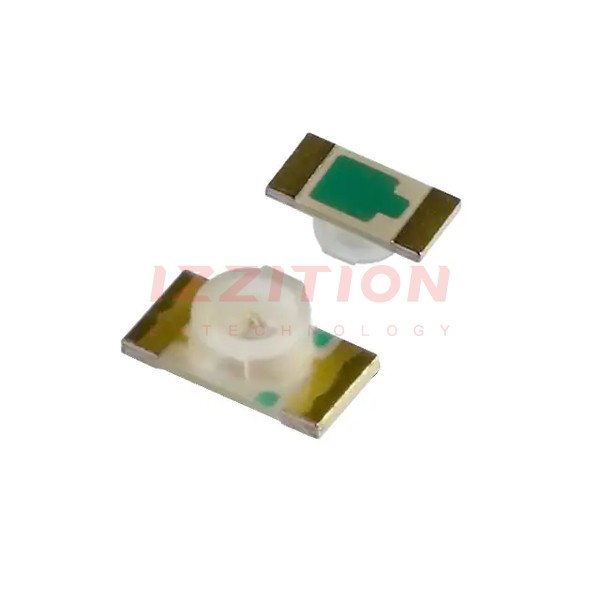

| Part Number | LNJ816C88RA | LNJ818C88RA | LNJ816C8DRA | LNJ816C8SRA | LNJ816C83RA | LNJ816C87RA |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Orange | Orange | Orange | Orange | Orange | Orange |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | - | - | - | - | - | - |
| Lens Transparency | - | - | - | - | - | - |
| Millicandela Rating | 9.8mcd | 33mcd | 2.1mcd | 1.5mcd | 48mcd | 30mcd |
| Lens Style | Round with Flat Top | Round with Domed Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | 1.70mm Dia | 1.42mm Dia | 1.70mm Dia | 1.70mm Dia | 1.70mm Dia | 1.70mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.9V | 1.9V | 1.93V | 1.93V | 2.03V | 1.95V |
| Current - Test | 10mA | 10mA | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - | - | - | - |
| Wavelength - Peak | 620nm | 620nm | 630nm | 610nm | 630nm | 615nm |
| Features | - | - | - | - | - | - |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | Microlens Type | - | Microlens Type | Microlens Type | Microlens Type | Microlens Type |
| Size / Dimension | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W |
| Height (Max) | 1.10mm | 1.60mm | 1.10mm | 1.10mm | 1.10mm | 1.10mm |
