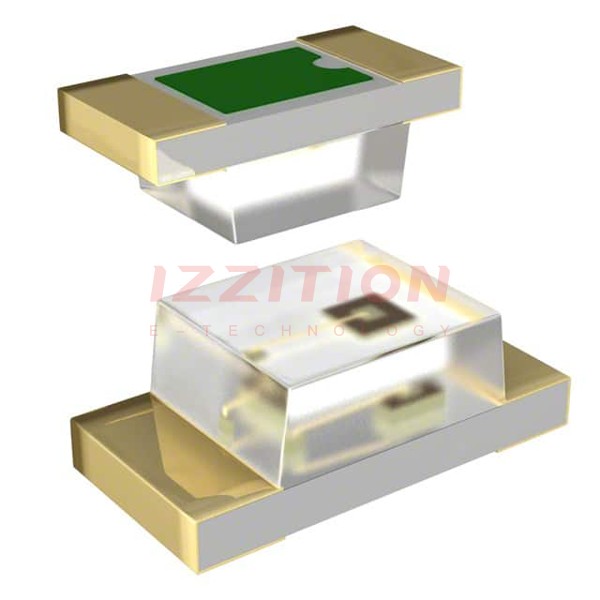

| Part Number | LNJ812K8SRA | LNJ814K8SRA | LNJ811K8SRA | LNJ812K87RA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Orange | Orange | Orange | Orange |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | - | - | - | Yellow |
| Lens Transparency | - | - | - | Diffused |
| Millicandela Rating | 1mcd | 1mcd | 1mcd | 21mcd |
| Lens Style | Round with Flat Top | Rectangle with Flat Top | Round with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.70mm Dia | 1.10mm x 0.80mm | 1.70mm Dia | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.93V | 1.93V | 1.93V | 1.95V |
| Current - Test | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - | - |
| Wavelength - Peak | 610nm | 610nm | 610nm | 615nm |
| Features | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 1206 (3216 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | TSS Type LED | - | - | TSS Type LED |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 3.20mm L x 1.60mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.65mm | 0.50mm | 1.10mm | 0.65mm |
