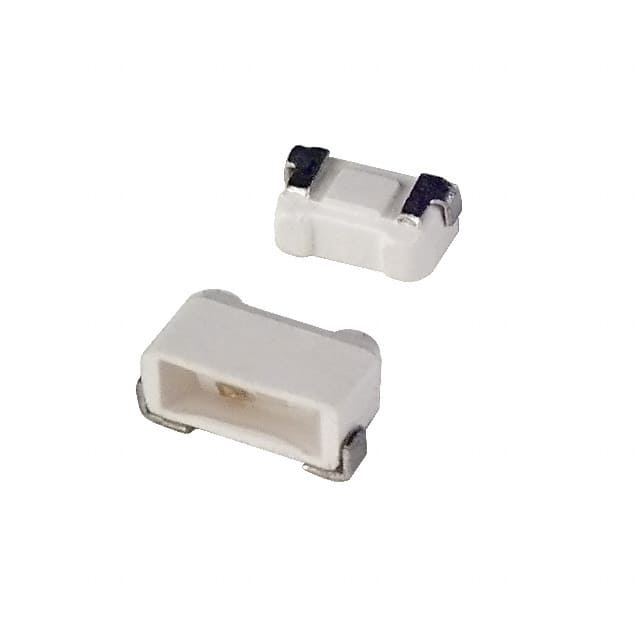

| Part Number | LNJ810C63RA | LNJ810C68RA | LNJ810C67RA | LNJ310C63RA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Orange | Orange | Orange | Green |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | - | - | - | - |
| Lens Transparency | - | - | - | - |
| Millicandela Rating | 48mcd | 45mcd | 30mcd | 15mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 2.00mm x 0.70mm | 2.00mm x 0.70mm | 2.00mm x 0.70mm | 2.00mm x 0.70mm |
| Voltage - Forward (Vf) (Typ) | 2.03V | 1.95V | 1.95V | 2V |
| Current - Test | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | - | - | - | - |
| Wavelength - Peak | 630nm | 620nm | 615nm | 575nm |
| Features | - | - | - | - |
| Package / Case | 2-SMD, J-Lead | 2-SMD, No Lead | 2-SMD, J-Lead | 2-SMD, No Lead |
| Supplier Device Package | SV (Side View) -Case Type | - | SV (Side View) -Case Type | - |
| Size / Dimension | 2.20mm L x 1.20mm W | 2.20mm L x 1.20mm W | 2.20mm L x 1.20mm W | 2.20mm L x 1.20mm W |
| Height (Max) | 1.20mm | 1.20mm | 1.20mm | 1.20mm |
