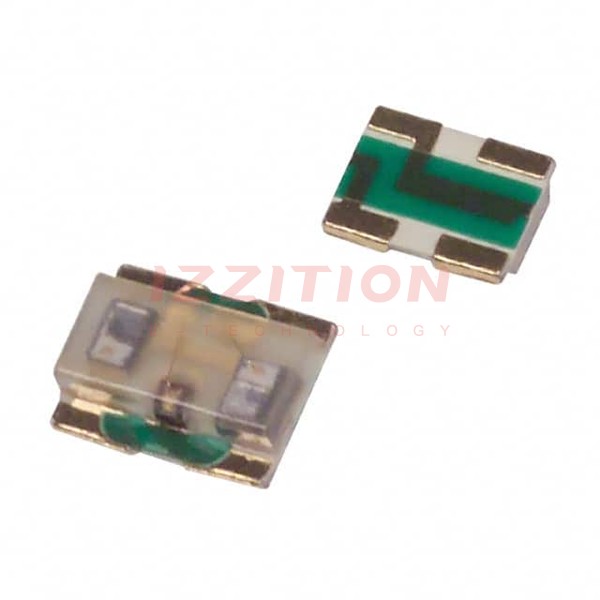

| Part Number | LNJ717W80RA1 | LNJ717W80RA |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Color | Blue, Green, Orange | Blue, Green, Orange |
| Configuration | Common Anode | Common Anode |
| Lens Color | - | - |
| Lens Transparency | - | - |
| Millicandela Rating | 30mcd Blue, 85mcd Green, 45mcd Orange | 10mcd Blue, 34mcd Green, 23mcd Orange |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 2.10mm x 1.15mm | 2.10mm x 1.15mm |
| Voltage - Forward (Vf) (Typ) | 3.1V Blue, 3.1V Green, 1.95V Orange | 3V Blue, 3V Green, 1.95V Orange |
| Current - Test | 5mA Blue, 5mA Green, 10mA Orange | 5mA Blue, 5mA Green, 10mA Orange |
| Viewing Angle | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Wavelength - Dominant | 472nm Blue, 535nm Green, 605nm Orange | - |
| Wavelength - Peak | 470nm Blue, 525nm Green, 615nm Orange | 470nm Blue, 525nm Green, 615nm Orange |
| Features | - | - |
| Package / Case | 4-SMD, No Lead, TSS-3 | 4-SMD, No Lead, TSS-3 |
| Supplier Device Package | TSS Type LED | TSS Type LED |
| Size / Dimension | 2.10mm L x 1.60mm W | 2.10mm L x 1.60mm W |
| Height (Max) | 0.65mm | 0.65mm |
