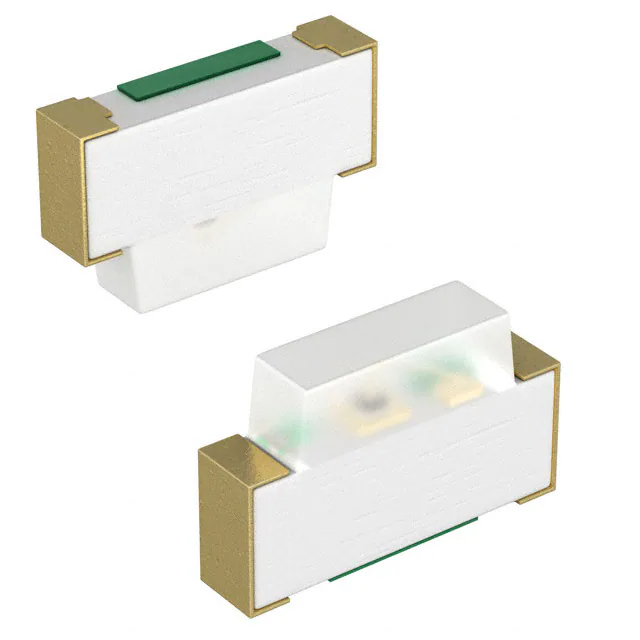

| Part Number | LNJ452W82RA | LNJ453W82RA | LNJ252W82RA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Amber | Amber | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | - | - | - |
| Lens Transparency | - | - | - |
| Millicandela Rating | 18mcd | 18mcd | 25mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.40mm | 1.20mm x 0.50mm | 1.20mm x 0.40mm |
| Voltage - Forward (Vf) (Typ) | 1.95V | 1.95V | 1.85V |
| Current - Test | 5mA | 5mA | 10mA |
| Viewing Angle | - | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | 589nm | 589nm | 630nm |
| Wavelength - Peak | 595nm | 595nm | 645nm |
| Features | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | SV (Side View) -0.4 Type | SV (Side View) -0.5 Type | SV (Side View) -0.4 Type |
| Size / Dimension | 1.80mm L x 1.10mm W | 1.80mm L x 1.10mm W | 1.80mm L x 1.10mm W |
| Height (Max) | 0.50mm | 0.60mm | 0.50mm |
