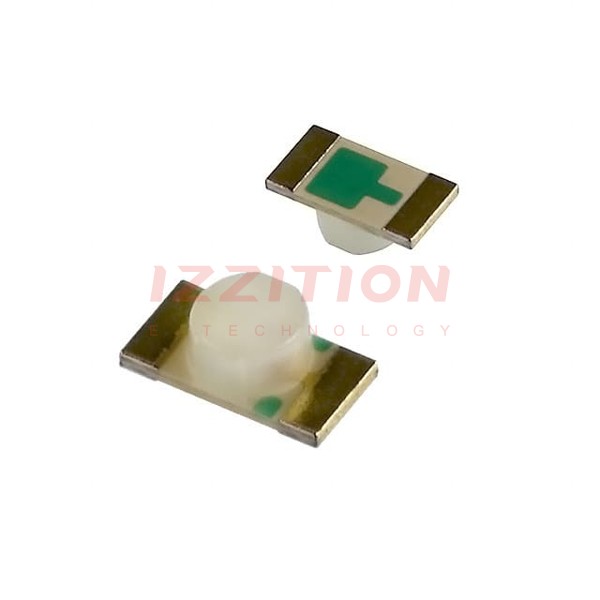

| Part Number | LNJ411K8YRA | LNJ414K8YRA | LNJ411K8YRU | LNJ411K84RA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Amber | Amber | Amber | Amber |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Yellow | - | Yellow | - |
| Lens Transparency | Diffused | - | Diffused | - |
| Millicandela Rating | 2.2mcd | 1.5mcd | 2.2mcd | 17mcd |
| Lens Style | Round with Flat Top | Rectangle with Flat Top | Round with Flat Top | Round with Flat Top |
| Lens Size | 1.70mm Dia | 1.10mm x 0.80mm | 1.70mm Dia | 1.70mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V | 2V |
| Current - Test | 10mA | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount, Bottom Entry | Surface Mount |
| Wavelength - Dominant | - | - | - | - |
| Wavelength - Peak | 590nm | 590nm | 590nm | 595nm |
| Features | - | - | - | - |
| Package / Case | 1206 (3216 Metric) | 0603 (1608 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 3216 (1206) | - | Chip LED | - |
| Size / Dimension | 3.20mm L x 1.60mm W | 1.60mm L x 0.80mm W | 3.20mm L x 1.60mm W | 3.20mm L x 1.60mm W |
| Height (Max) | 1.10mm | 0.50mm | 1.10mm | 1.10mm |
