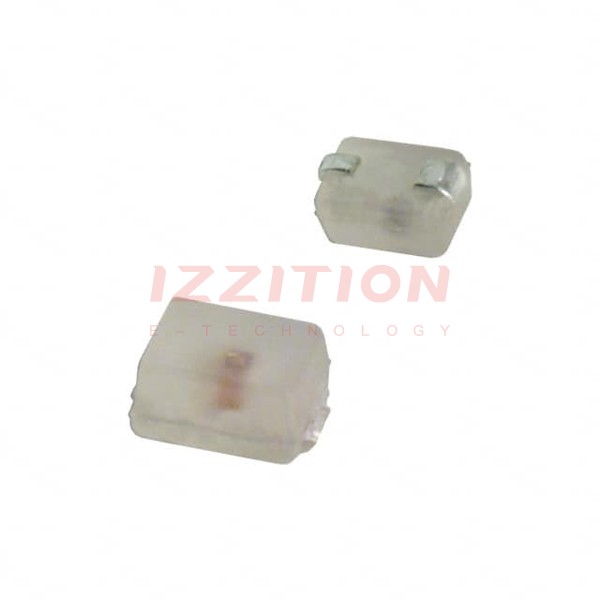

| Part Number | LNJ406K5YUX | LNJ406K54UX | LNJ406K5YRX |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Amber | Amber | Amber |
| Configuration | Standard | Standard | Standard |
| Lens Color | Yellow | Yellow | - |
| Lens Transparency | Diffused | Diffused | - |
| Millicandela Rating | 1mcd | 8.5mcd | 1mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm | 1.70mm x 1.25mm | 1.70mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2V | 2V | 2V |
| Current - Test | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 590nm | 595nm | 590nm |
| Features | - | - | - |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | - | - | S-J Type LED |
| Size / Dimension | 1.70mm L x 1.25mm W | 1.70mm L x 1.25mm W | 1.70mm L x 1.25mm W |
| Height (Max) | 1.10mm | 1.10mm | 1.10mm |
