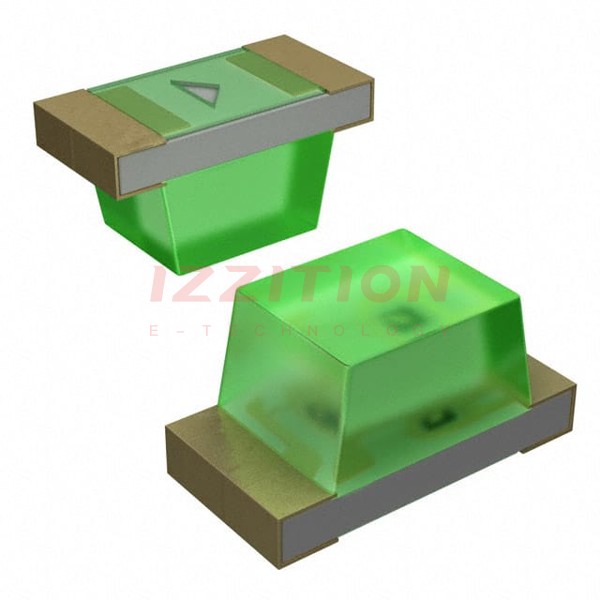

| Part Number | LNJ308G8TRA | LNJ308G8LRA | LNJ308G8PRA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Green | Green | Green |
| Configuration | Standard | Standard | Standard |
| Lens Color | - | Green | Green |
| Lens Transparency | - | Diffused | Diffused |
| Millicandela Rating | 5mcd | 3mcd | 0.7mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 0.90mm x 0.80mm | 0.90mm x 0.80mm | 0.90mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.03V | 1.9V | 2.03V |
| Current - Test | 10mA | 5mA | 10mA |
| Viewing Angle | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 565nm | 565nm | 555nm |
| Features | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | SS Type LED | SS Type LED | - |
| Size / Dimension | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W |
| Height (Max) | 0.80mm | 0.80mm | 0.80mm |
