LNJ214R82RA
  • Share:

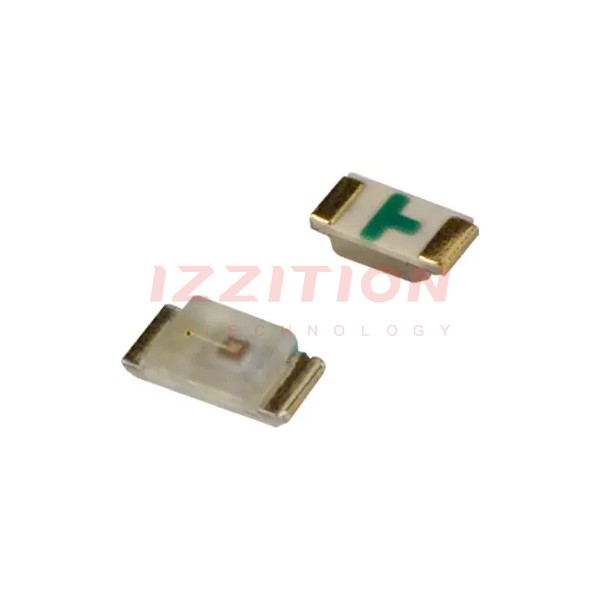

Panasonic Electronic Components LNJ214R82RA

Manufacturer No:
LNJ214R82RA
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
LNJ214R82RA Datasheet
ECAD Model:
-
Description:
LED RED USS TYPE LED SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Color:Red
Configuration:Standard
Lens Color:-
Lens Transparency:-
Millicandela Rating:10mcd
Lens Style:Rectangle with Flat Top
Lens Size:1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ):1.85V
Current - Test:5mA
Viewing Angle:-
Mounting Type:Surface Mount
Wavelength - Dominant:630nm
Wavelength - Peak:645nm
Features:-
Package / Case:0603 (1608 Metric)
Supplier Device Package:-
Size / Dimension:1.60mm L x 0.80mm W
Height (Max):0.50mm
0 Remaining View Similar

In Stock

-
180

Please send RFQ , we will respond immediately.

Similar Products

Part Number LNJ214R82RA LNJ214R8ARA   LNJ211R82RA   LNJ212R82RA
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete
Color Red Red Red Red
Configuration Standard Standard Standard Standard
Lens Color - - - -
Lens Transparency - - - -
Millicandela Rating 10mcd 6.7mcd 15mcd 15mcd
Lens Style Rectangle with Flat Top Rectangle with Flat Top Round with Flat Top Rectangle with Flat Top
Lens Size 1.10mm x 0.80mm 1.10mm x 0.80mm 1.70mm Dia 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) 1.85V 1.72V 1.92V 1.92V
Current - Test 5mA 10mA 10mA 10mA
Viewing Angle - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Wavelength - Dominant 630nm - - -
Wavelength - Peak 645nm 655nm 645nm 645nm
Features - - - -
Package / Case 0603 (1608 Metric) 0603 (1608 Metric) 1206 (3216 Metric) 0603 (1608 Metric)
Supplier Device Package - - - -
Size / Dimension 1.60mm L x 0.80mm W 1.60mm L x 0.80mm W 3.20mm L x 1.60mm W 1.60mm L x 0.80mm W
Height (Max) 0.50mm 0.50mm 1.10mm 0.65mm
