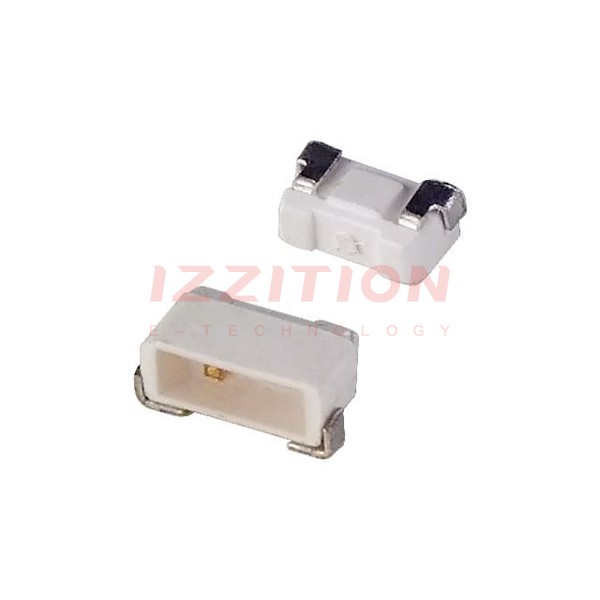

| Part Number | LNJ210C6ARA | LNJ210C6RRA | LNJ210C62RA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Colorless | Colorless | - |
| Lens Transparency | Clear | Clear | - |
| Millicandela Rating | 8mcd | 0.7mcd | 23mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 2.00mm x 0.70mm | 2.00mm x 0.70mm | 2.00mm x 0.70mm |
| Voltage - Forward (Vf) (Typ) | 1.72V | 2.03V | 1.92V |
| Current - Test | 10mA | 10mA | 10mA |
| Viewing Angle | - | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 660nm | 700nm | 645nm |
| Features | - | - | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, J-Lead |
| Supplier Device Package | SV (Side View) -Case Type | SV (Side View) -Case Type | SV (Side View) -Case Type |
| Size / Dimension | 2.20mm L x 1.20mm W | 2.20mm L x 1.20mm W | 2.20mm L x 1.20mm W |
| Height (Max) | 1.00mm | 1.20mm | 1.20mm |
