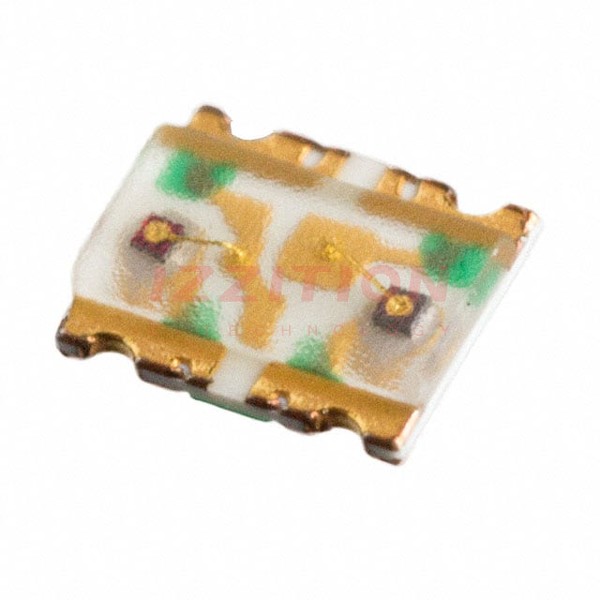

| Part Number | LNJ167W85RA | LNJ167W8RRA | LNJ167W87RA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Blue, Red | Green, Red | Green, Red |
| Configuration | Independent | Independent | Independent |
| Lens Color | - | - | - |
| Lens Transparency | - | - | - |
| Millicandela Rating | 15mcd Blue, 15mcd Red | 7.5mcd Green, 15mcd Red | 90mcd Green, 15mcd Red |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.30mm x 0.70mm | 1.30mm x 0.70mm | 1.30mm x 0.70mm |
| Voltage - Forward (Vf) (Typ) | 2.95V Blue, 1.95V Red | 1.95V Green, 1.95V Red | 3V Green, 1.95V Red |
| Current - Test | 5mA Blue, 5mA Red | 5mA Green, 5mA Red | 5mA Green, 5mA Red |
| Viewing Angle | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 470nm Blue, 628nm Red | 572nm Green, 628nm Red | 525nm Green, 628nm Red |
| Wavelength - Peak | 462nm Blue, 638nm Red | 575nm Green, 638nm Red | 520nm Green, 638nm Red |
| Features | - | - | - |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD | 4-SMD | 4-SMD |
| Size / Dimension | 1.30mm L x 1.05mm W | 1.30mm L x 1.05mm W | 1.30mm L x 1.05mm W |
| Height (Max) | 0.35mm | 0.35mm | 0.35mm |
