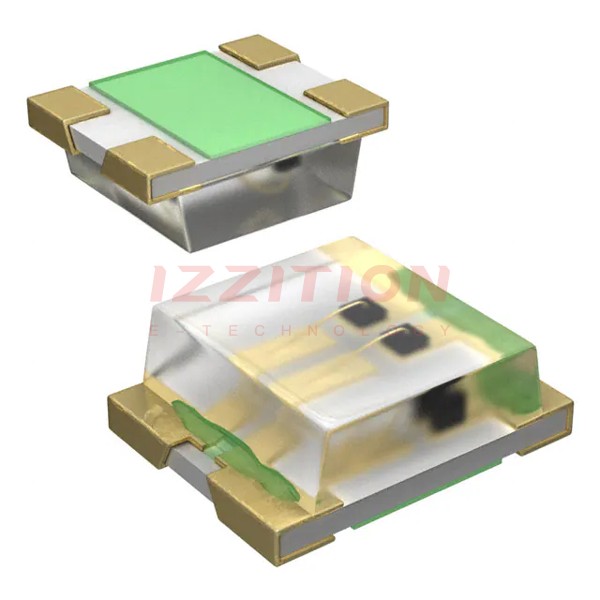

| Part Number | LNJ115W8VRA | LNJ115W8VRA1 | LNJ115W8ARA | LNJ115W8HRA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Green, Orange | - | Green, Orange | Blue, Red |
| Configuration | Independent | - | Independent | Independent |
| Lens Color | White | - | - | White |
| Lens Transparency | Diffused | - | - | Diffused |
| Millicandela Rating | 34mcd Green, 21mcd Orange | - | 5mcd Green, 1mcd Orange | 8.4mcd Blue, 6.7mcd Red |
| Lens Style | Rectangle with Flat Top | - | Rectangle with Flat Top | - |
| Lens Size | - | - | 1.10mm x 1.25mm | - |
| Voltage - Forward (Vf) (Typ) | 3V Green, 1.95V Orange | - | 2.03V Green, 1.93V Orange | 3.2V Blue, 1.72V Red |
| Current - Test | 5mA Green, 10mA Orange | - | 10mA Green, 10mA Orange | 5mA Blue, 10mA Red |
| Viewing Angle | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - | - |
| Wavelength - Peak | 525nm Green, 615nm Orange | - | 565nm Green, 630nm Orange | 470nm Blue, 655nm Red |
| Features | - | - | - | - |
| Package / Case | 0605 (1613 Metric) | 0605 (1613 Metric) | 0605 (1613 Metric) | 0605 (1613 Metric) |
| Supplier Device Package | TSS-2 Type | TSS-2 Type | TSS-2 Type | TSS Type LED |
| Size / Dimension | 1.60mm L x 1.25mm W | 1.60mm L x 1.25mm W | 1.60mm L x 1.25mm W | 1.60mm L x 1.25mm W |
| Height (Max) | 0.65mm | 0.65mm | 0.65mm | 0.55mm |
