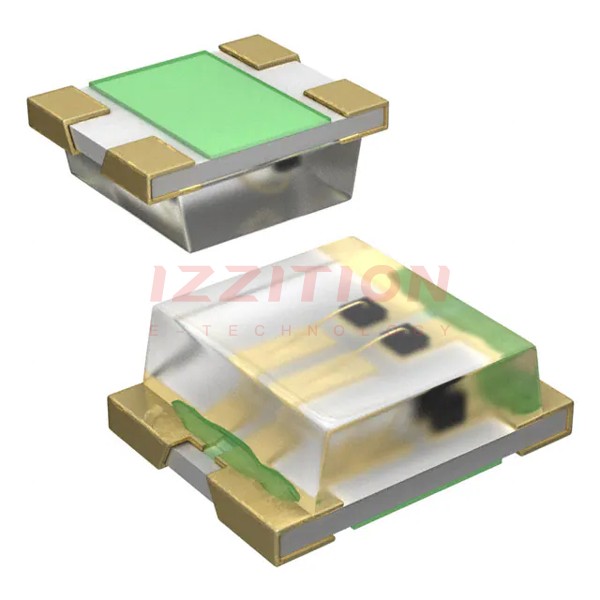

| Part Number | LNJ115W87RA1 | LNJ115W8RRA1 | LNJ115W8VRA1 | LNJ115W85RA1 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Green, Red | Green, Orange | - | Blue, Red |
| Configuration | Common Cathode | Independent | - | Common Cathode |
| Lens Color | - | - | - | - |
| Lens Transparency | - | - | - | - |
| Millicandela Rating | 40mcd Green, 24mcd Red | 15mcd Green, 32mcd Orange | - | 12mcd Blue, 24mcd Red |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | - | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.25mm | 1.10mm x 1.25mm | - | 1.10mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.9V Green, 1.92V Red | 2.03V Green, 2V Orange | - | 2.9V Blue, 1.92V Red |
| Current - Test | 5mA Green, 10mA Red | 10mA Green, 10mA Orange | - | 5mA Blue, 10mA Red |
| Viewing Angle | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 527nm Green, 630nm Red | 572nm Green, 620nm Orange | - | 470nm Blue, 630nm Red |
| Wavelength - Peak | 520nm Green, 645nm Red | 575nm Green, 630nm Orange | - | 465nm Blue, 645nm Red |
| Features | - | - | - | - |
| Package / Case | 0605 (1613 Metric) | 0605 (1613 Metric) | 0605 (1613 Metric) | 0605 (1613 Metric) |
| Supplier Device Package | - | TSS-2 Type | TSS-2 Type | - |
| Size / Dimension | 1.60mm L x 1.25mm W | 1.60mm L x 1.25mm W | 1.60mm L x 1.25mm W | 1.60mm L x 1.25mm W |
| Height (Max) | 0.65mm | 0.65mm | 0.65mm | 0.65mm |
