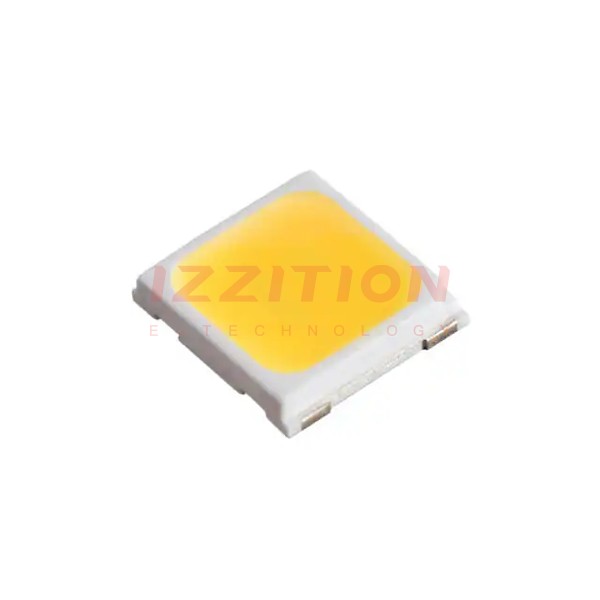

| Part Number | LNJ03004GLD1 | LNJ03004GND1 | LNJ03004BLD1 | LNJ03004GDD1 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | White, Warm | White, Cool | White, Warm | White, Cool |
| CCT (K) | 2700K | 5000K | 2700K | 6500K |
| Flux @ 85°C, Current - Test | - | - | - | - |
| Flux @ 25°C, Current - Test | 52lm (37lm ~ 60lm) | 59lm (37lm ~ 80lm) | 24lm (20lm ~ 28lm) | 59lm (37lm ~ 80lm) |
| Current - Test | 75mA | 75mA | 60mA | 75mA |
| Voltage - Forward (Vf) (Typ) | 6.2V | 6.2V | 2.95V | 6.2V |
| Lumens/Watt @ Current - Test | 112 lm/W | 127 lm/W | 136 lm/W | 127 lm/W |
| CRI (Color Rendering Index) | 82 (Typ) | 82 (Typ) | 82 (Typ) | 82 (Typ) |
| Current - Max | 120mA | 120mA | 120mA | 120mA |
| Viewing Angle | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1212 (3030 Metric) | 1212 (3030 Metric) | 1212 (3030 Metric) | 1212 (3030 Metric) |
| Supplier Device Package | 3230 | 3230 | 3230 | 3230 |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
