Please send RFQ , we will respond immediately.

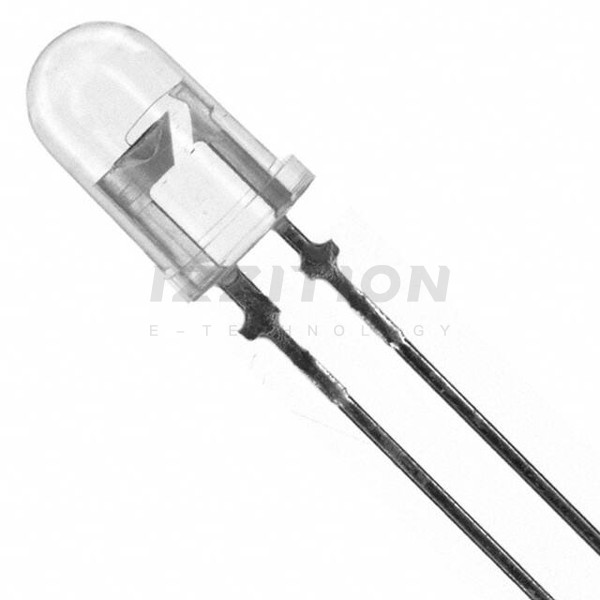

| Part Number | LNA2902L | LNA2904L | LNA2903L | LNA2402L | LNA2702L | LNA2802L |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA | 100mA | 100mA | 100mA | 50mA | 50mA |
| Radiant Intensity (Ie) Min @ If | 9mW/sr @ 50mA | 10mW/sr @ 50mA | 9mW/sr @ 50mA | 5mW/sr @ 100mA | 1.8mW/sr @ 50mA | 2.5mW/sr @ 50mA |
| Wavelength | 950nm | 950nm | 950nm | 950nm | 940nm | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.4V | 1.35V | 1.4V | 1.3V | 1.3V | 1.3V |
| Viewing Angle | 40° | 40° | 40° | 16° | 40° | 40° |
| Orientation | Top View | Top View | Top View | Top View | Side View, Dual | Top View |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 100°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | T 1 3/4 | T 1 3/4 | T 1 3/4 | TO-18-2 Metal Can | Radial | T-1 |
