Please send RFQ , we will respond immediately.

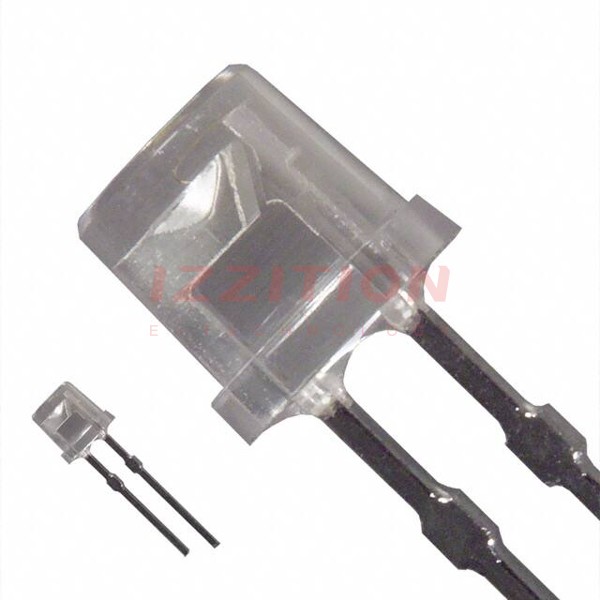

| Part Number | LN64 | LN65 | LN69 | LN54 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA | 100mA | 50mA | 50mA |
| Radiant Intensity (Ie) Min @ If | 3.5mW/sr @ 50mA | 4.3mW/sr @ 100mA | 3.5mW/sr @ 50mA | 2.5mW/sr @ 50mA |
| Wavelength | 950nm | 950nm | 940nm | 950nm |
| Voltage - Forward (Vf) (Typ) | 1.3V | 1.3V | 1.3V | 1.5V |
| Viewing Angle | 90° | 70° | 30° | 34° |
| Orientation | Top View | Side View | Top View | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | T 1 3/4 | Radial | T-1 | Radial |
