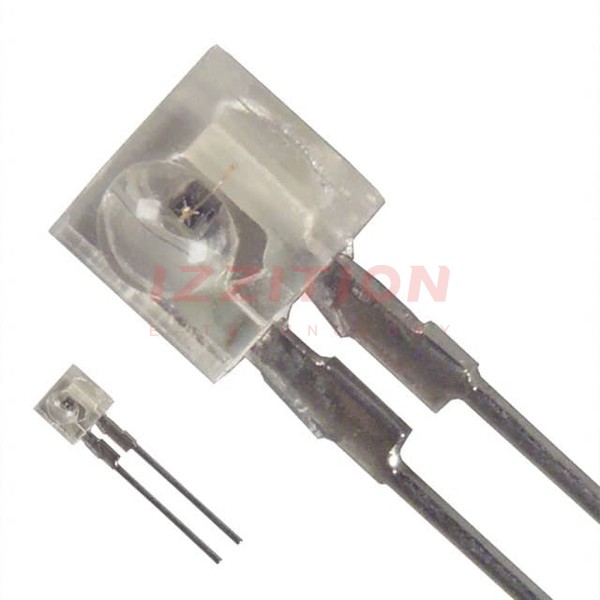

| Part Number | LN58 | LN78 | LN59 | LN52 | LN54 | LN55 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 50mA | 100mA | 50mA | 100mA | 50mA | 50mA |
| Radiant Intensity (Ie) Min @ If | 1.8mW/sr @ 50mA | 6mW/sr @ 50mA | 1.8mW/sr @ 50mA | 5mW/sr @ 50mA | 2.5mW/sr @ 50mA | 1.8mW/sr @ 50mA |
| Wavelength | 950nm | 880nm | 940nm | 950nm | 950nm | 950nm |
| Voltage - Forward (Vf) (Typ) | 1.5V | 1.5V | 1.3V | 1.25V | 1.5V | 1.5V |
| Viewing Angle | 70° | 80° | 40° | 100° | 34° | 70° |
| Orientation | Side View | Side View | Side View, Dual | Top View | Side View | Side View |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | TO-18-2 Metal Can | Radial | Radial |
