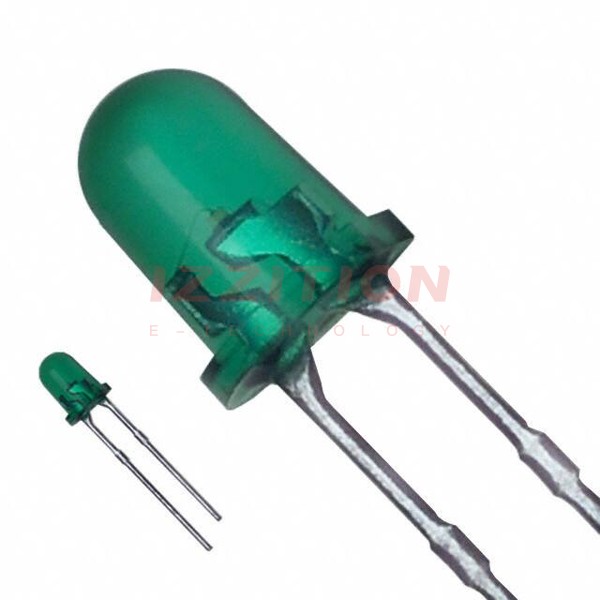

| Part Number | LN39GCP | LN39GPP | LN38GCP |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Green | Green | Green |
| Configuration | Standard | Standard | Standard |
| Lens Color | Green | Green | Green |
| Lens Transparency | Clear | Diffused | Clear |
| Millicandela Rating | 15mcd | 5mcd | 8mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 4.00mm Dia | 4.00mm Dia | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 565nm | 565nm | 565nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | 4mm Round | 4mm Round | 3mm Round |
| Size / Dimension | - | - | - |
| Height (Max) | 6.20mm | 6.20mm | 5.20mm |
