Please send RFQ , we will respond immediately.

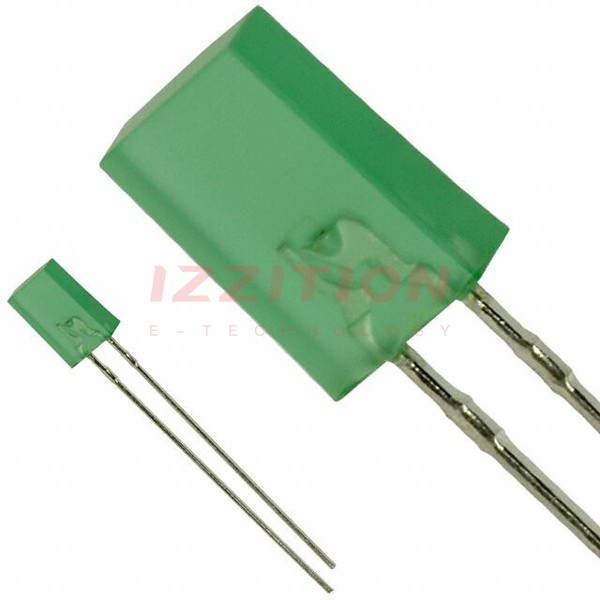

| Part Number | LN342GPX | LN382GPX | LN352GPX | LN322GPX | LN340GPX | LN342GP | LN342GPH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Green | Green | Green | Green | Green | Green | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | - | - | - | - | - | Green | - |
| Lens Transparency | - | - | - | - | - | Diffused | - |
| Millicandela Rating | 1.5mcd | 1.5mcd | 2mcd | 1mcd | 2.5mcd | 1.5mcd | 1.5mcd |
| Lens Style | Rectangle with Flat Top | Round with Domed Top | Square with Flat Top | Round with Flat Top | Round with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm | 2.00mm Dia | 4.00mm | 2.00mm Dia | 4.40mm Dia | 5.00mm x 2.00mm | 5.00mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - | - | - | - |
| Wavelength - Peak | 565nm | 565nm | 565nm | 565nm | 565nm | 565nm | 565nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | Square Type | 2mm | Square Type LED | 2mm | Flat Top LED | Square Type LED | Square Type |
| Size / Dimension | - | - | - | - | - | - | - |
| Height (Max) | 7.70mm | 7.90mm | 8.70mm | 8.20mm | 5.20mm | 7.70mm | 7.70mm |
