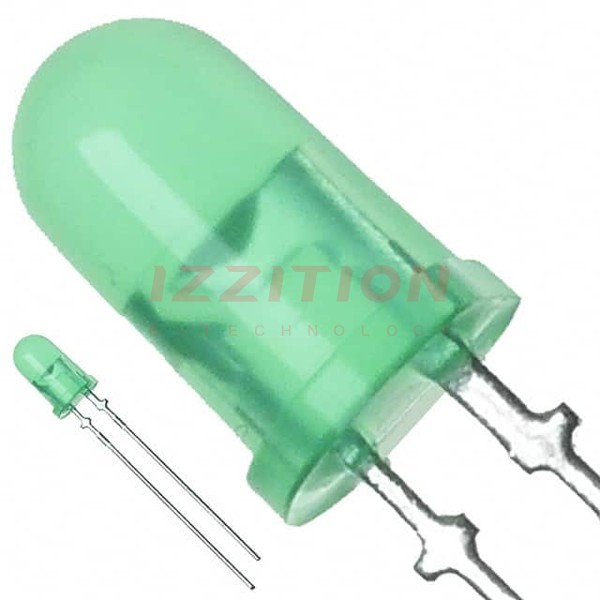

| Part Number | LN31GPH | LN31GPHL | LN31GPX | LN316GPH | LN317GPH | LN31GCPH |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Green | Green | Green | Green | Green | Green |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | - | Green | Green | - | - | - |
| Lens Transparency | - | Diffused | Diffused | - | - | - |
| Millicandela Rating | 15mcd | 15mcd | 15mcd | 1.5mcd | 1.5mcd | 20mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Rectangle with Flat Top | Rectangle with Flat Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 7.00mm x 3.00mm | 5.30mm x 1.80mm | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - | - | - |
| Wavelength - Peak | 565nm | 565nm | 565nm | 565nm | 565nm | 565nm |
| Features | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | 5mm Round | 5mm Round | 5mm Round | Square Type | Square Type LED | - |
| Size / Dimension | - | - | - | - | - | - |
| Height (Max) | 8.85mm | 8.85mm | 8.85mm | 13.85mm | 13.85mm | 8.85mm |
