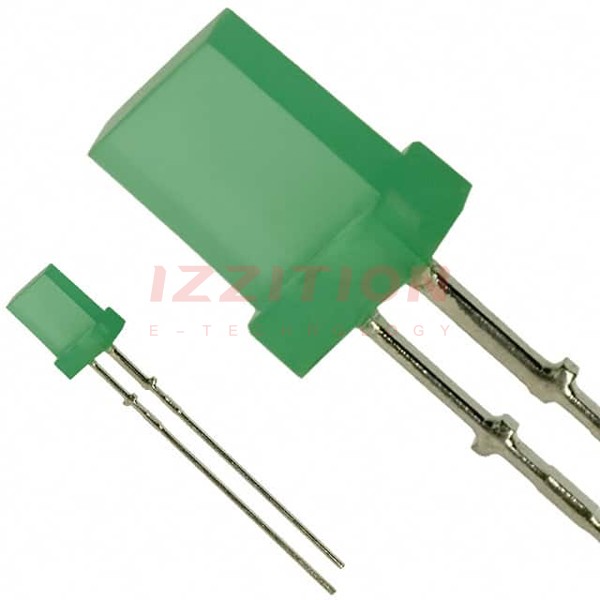

| Part Number | LN317GPH | LN31GPH | LN316GPH |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Green | Green | Green |
| Configuration | Standard | Standard | Standard |
| Lens Color | - | - | - |
| Lens Transparency | - | - | - |
| Millicandela Rating | 1.5mcd | 15mcd | 1.5mcd |
| Lens Style | Rectangle with Flat Top | Round with Domed Top | Rectangle with Flat Top |
| Lens Size | 5.30mm x 1.80mm | 5mm, T-1 3/4 | 7.00mm x 3.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA |
| Viewing Angle | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 565nm | 565nm | 565nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | Square Type LED | 5mm Round | Square Type |
| Size / Dimension | - | - | - |
| Height (Max) | 13.85mm | 8.85mm | 13.85mm |
