Please send RFQ , we will respond immediately.

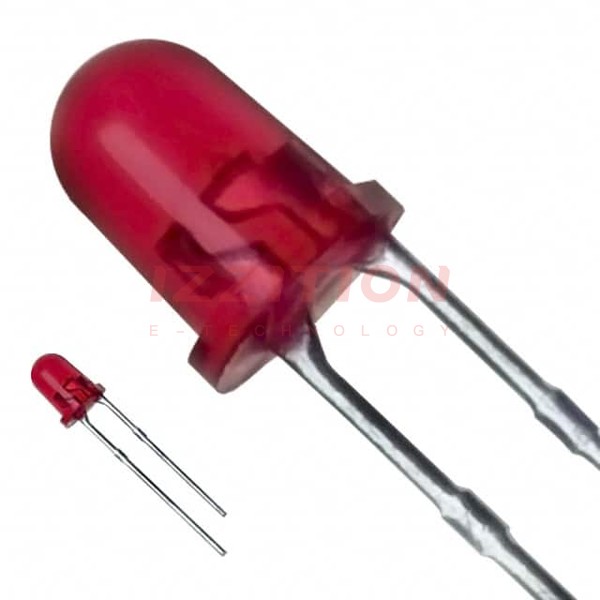

| Part Number | LN29RCP | LN29RPP | LN29RCPX | LN28RCP |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | - | Red |
| Lens Transparency | Clear | Diffused | - | Clear |
| Millicandela Rating | 3.5mcd | 1.5mcd | 3.5mcd | 1.5mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 4.00mm Dia | 4.00mm Dia | 4.00mm Dia | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 15mA | 15mA | 15mA | 15mA |
| Viewing Angle | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - |
| Wavelength - Peak | 700nm | 700nm | 700nm | 700nm |
| Features | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial |
| Supplier Device Package | 4mm Round | 4mm Round | 4mm Round | 3mm Round |
| Size / Dimension | - | - | - | - |
| Height (Max) | 6.20mm | 6.20mm | 6.20mm | 5.20mm |
