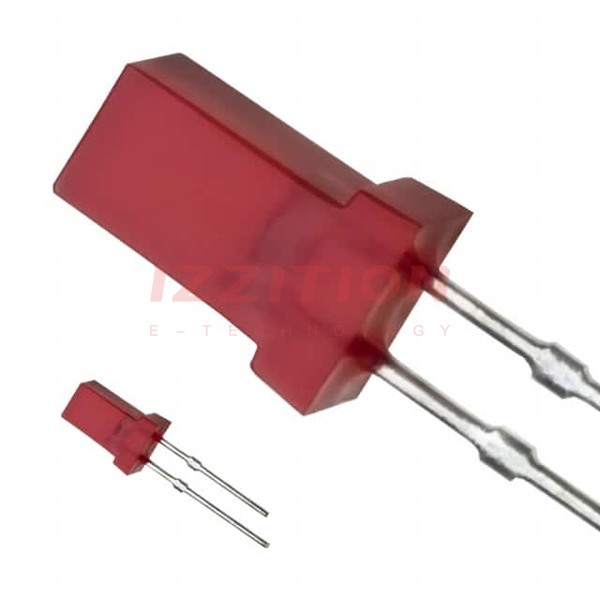

| Part Number | LN252RP | LN253RP | LN25RP | LN252RPX | LN212RP | LN222RP | LN242RP | LN250RP |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red | Red | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | Red | Red | Red | Red | Red | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused | Diffused |
| Millicandela Rating | 0.6mcd | 1mcd | 0.7mcd | 0.6mcd | 0.4mcd | 1mcd | 0.4mcd | 0.4mcd |
| Lens Style | Square with Flat Top | Round with Flat Top | Round with Domed Top | Square with Flat Top | Triangle with Flat Top | Round with Flat Top | Rectangle with Flat Top | Square with Flat Top |
| Lens Size | 4.00mm | 3.70mm Dia | 3.50mm Dia | 4.00mm | 4.50mm x 4.00mm | 2.00mm Dia | 5.00mm x 2.00mm | 5.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 15mA | 15mA | 15mA | 15mA | 15mA | 15mA | 15mA | 15mA |
| Viewing Angle | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - | - | - | - | - |
| Wavelength - Peak | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm |
| Features | - | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial, Side View | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | Square Type LED | Flat Top LED | - | Square Type LED | - | 2mm | Square Type LED | Square Type LED |
| Size / Dimension | - | - | 5.00mm L x 3.30mm W | - | - | - | - | - |
| Height (Max) | 8.70mm | 9.20mm | - | 8.70mm | 5.70mm | 8.20mm | 7.70mm | 9.20mm |
