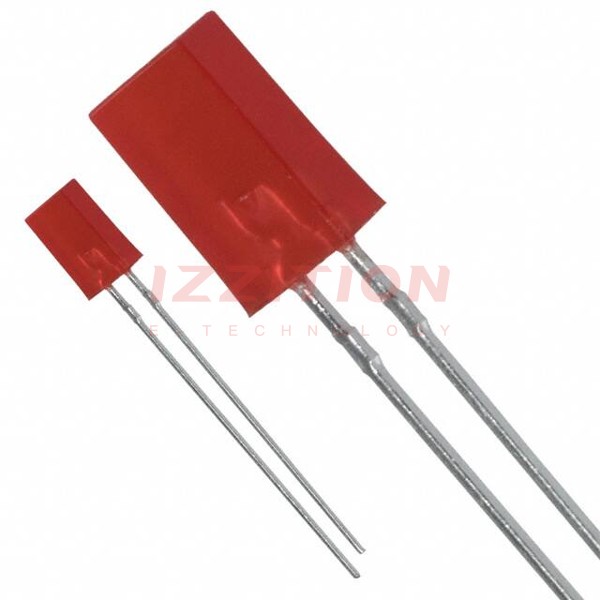

| Part Number | LN242RPX | LN282RPX | LN252RPX | LN222RPX | LN240RPX | LN242RP | LN242RPH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | Red | Red | - | Red | - |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | - | Diffused | - |
| Millicandela Rating | 0.4mcd | 1mcd | 0.6mcd | 0.6mcd | 0.7mcd | 0.4mcd | 0.4mcd |
| Lens Style | Rectangle with Flat Top | Round with Domed Top | Square with Flat Top | Round with Flat Top | Round with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm | 2.00mm Dia | 4.00mm | 2.00mm Dia | 4.40mm Dia | 5.00mm x 2.00mm | 5.00mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 15mA | 15mA | 15mA | 15mA | 20mA | 15mA | 20mA |
| Viewing Angle | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - | - | - | - |
| Wavelength - Peak | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | Square Type LED | 2mm | Square Type LED | 2mm | - | Square Type LED | Square Type LED |
| Size / Dimension | - | - | - | - | - | - | - |
| Height (Max) | 7.70mm | 7.90mm | 8.70mm | 8.20mm | 5.20mm | 7.70mm | 12.20mm |
