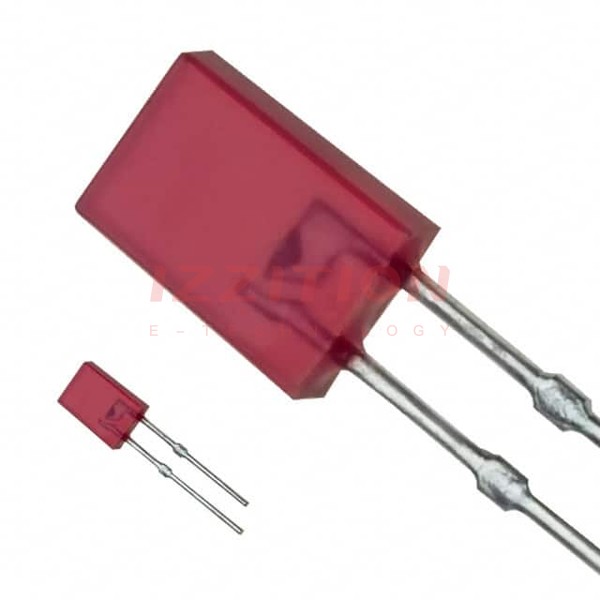

| Part Number | LN242RP | LN247RP | LN252RP | LN242RPX | LN242RPH | LN212RP | LN222RP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | Red | Red | Red | Red | - | Red | Red |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | - | Diffused | Diffused |
| Millicandela Rating | 0.4mcd | 0.7mcd | 0.6mcd | 0.4mcd | 0.4mcd | 0.4mcd | 1mcd |
| Lens Style | Rectangle with Flat Top | Round with Domed Top | Square with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Triangle with Flat Top | Round with Flat Top |
| Lens Size | 5.00mm x 2.00mm | 1.80mm Dia | 4.00mm | 5.00mm x 2.00mm | 5.00mm x 2.00mm | 4.50mm x 4.00mm | 2.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 15mA | 15mA | 15mA | 15mA | 20mA | 15mA | 15mA |
| Viewing Angle | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole, Axial | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - | - | - | - |
| Wavelength - Peak | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm |
| Features | - | - | - | - | - | - | - |
| Package / Case | Radial | Axial, Flat Leads | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | Square Type LED | Axial | Square Type LED | Square Type LED | Square Type LED | - | 2mm |
| Size / Dimension | - | 2.80mm L x 2.80mm W | - | - | - | - | - |
| Height (Max) | 7.70mm | 3.00mm | 8.70mm | 7.70mm | 12.20mm | 5.70mm | 8.20mm |
