Please send RFQ , we will respond immediately.

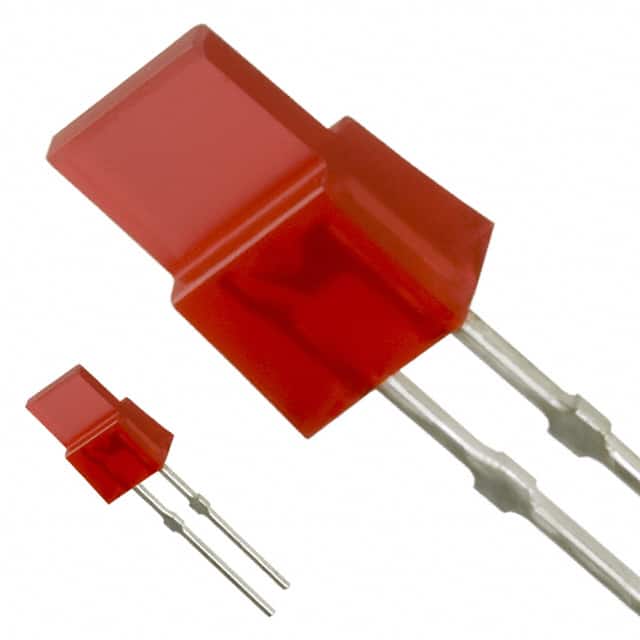

| Part Number | LN224RP | LN224RPH | LN222RP |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red |
| Configuration | Standard | Standard | Standard |
| Lens Color | Red | - | Red |
| Lens Transparency | Diffused | - | Diffused |
| Millicandela Rating | 0.6mcd | 0.6mcd | 1mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Round with Flat Top |
| Lens Size | 5.00mm x 1.00mm | 5.00mm x 1.00mm | 2.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V |
| Current - Test | 15mA | 20mA | 15mA |
| Viewing Angle | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 700nm | 700nm | 700nm |
| Features | - | - | - |
| Package / Case | Radial | Radial | Radial |
| Supplier Device Package | Square Type LED | Square Type LED | 2mm |
| Size / Dimension | - | - | - |
| Height (Max) | 8.70mm | 12.55mm | 8.20mm |
