Please send RFQ , we will respond immediately.

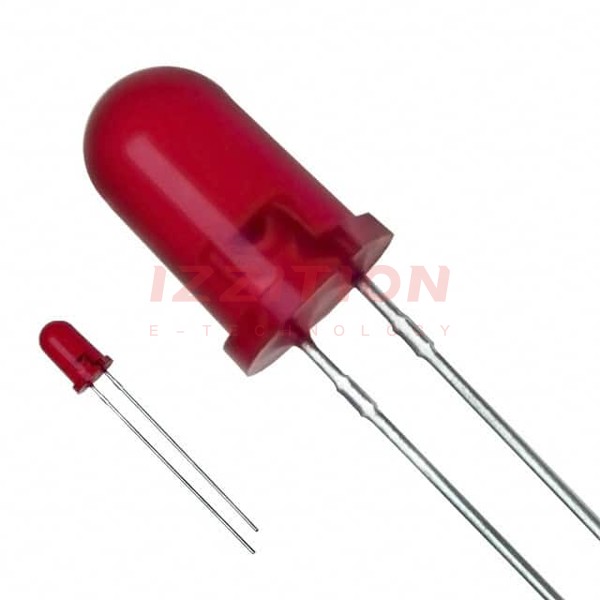

| Part Number | LN21RPX | LN28RPX | LN29RPX | LN21RPH |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard |
| Lens Color | - | Red | Red | - |
| Lens Transparency | - | Diffused | Diffused | - |
| Millicandela Rating | 4mcd | 2.8mcd | 2mcd | 3mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 3mm, T-1 | 4.00mm Dia | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 15mA | 15mA | 20mA |
| Viewing Angle | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - |
| Wavelength - Peak | 700nm | 700nm | 700nm | 700nm |
| Features | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial |
| Supplier Device Package | 5mm Round | 3mm Round | 4mm Round | 5mm Round |
| Size / Dimension | - | - | - | - |
| Height (Max) | 8.85mm | 5.70mm | 6.20mm | 11.65mm |
