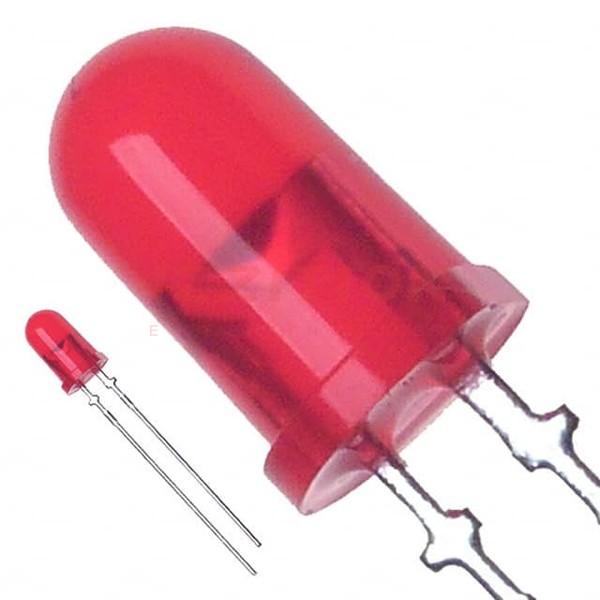

| Part Number | LN21RPH | LN221RPH | LN21RPHL | LN21WPH | LN21RPX | LN216RPH | LN217RPH | LN21CPH | LN21RCPH |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Color | Red | Red | Red | Red | Red | Red | Red | Red | Red |
| Configuration | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Lens Color | - | - | Red | - | - | Red | Red | - | - |
| Lens Transparency | - | - | Diffused | - | - | Diffused | Diffused | - | - |
| Millicandela Rating | 3mcd | 1mcd | 3mcd | 3mcd | 4mcd | 0.5mcd | 0.6mcd | 5mcd | 5mcd |
| Lens Style | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Round with Domed Top | Rectangle with Flat Top | Rectangle with Flat Top | Round with Domed Top | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 | 2.60mm Dia | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 5mm, T-1 3/4 | 7.00mm x 3.00mm | 5.30mm x 1.80mm | 5mm, T-1 3/4 | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 15mA | 20mA | 20mA | 20mA | 20mA | 20mA | 20mA |
| Viewing Angle | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - | - | - | - | - | - | - |
| Wavelength - Peak | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm | 700nm |
| Features | - | - | - | - | - | - | - | - | - |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | 5mm Round | - | 5mm Round | 5mm Round | 5mm Round | Square Type LED | Square Type | 5mm Round | 5mm Round |
| Size / Dimension | - | - | - | - | - | - | - | - | - |
| Height (Max) | 11.65mm | 12.85mm | 11.65mm | 8.85mm | 8.85mm | 13.85mm | 13.85mm | 11.65mm | 8.85mm |
