LN1861CTR
  • Share:

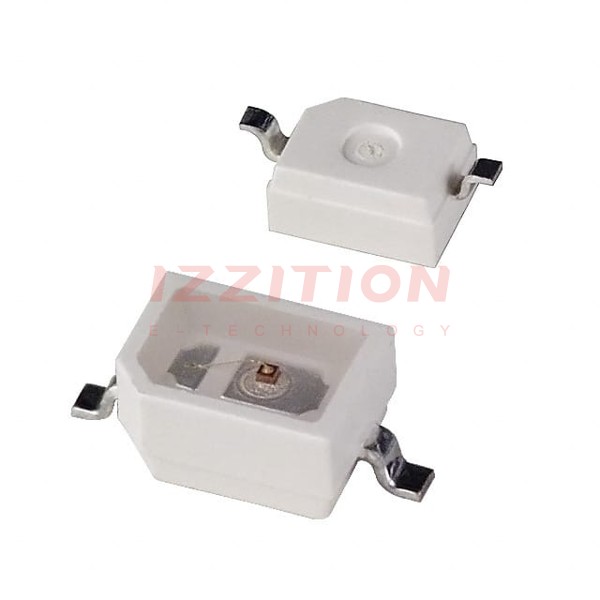

Panasonic Electronic Components LN1861CTR

Manufacturer No:
LN1861CTR
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
LN1861CTR Datasheet
ECAD Model:
-
Description:
LED ORANGE CLEAR 2SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Color:Orange
Configuration:Standard
Lens Color:Colorless
Lens Transparency:Clear
Millicandela Rating:5mcd
Lens Style:Rectangle with Flat Top
Lens Size:2.50mm x 1.70mm
Voltage - Forward (Vf) (Typ):2.1V
Current - Test:20mA
Viewing Angle:-
Mounting Type:Surface Mount
Wavelength - Dominant:-
Wavelength - Peak:630nm
Features:-
Package / Case:2-SMD, Gull Wing
Supplier Device Package:2-SMD
Size / Dimension:3.00mm L x 2.00mm W
Height (Max):1.80mm
0 Remaining View Similar

In Stock

-
101

Please send RFQ , we will respond immediately.

Similar Products

Part Number LN1861CTR LN1261CTR   LN1361CTR   LN1461CTR   LN1851CTR
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Color Orange Red Green Amber Orange
Configuration Standard Standard Standard Standard Standard
Lens Color Colorless Colorless Colorless Colorless Colorless
Lens Transparency Clear Clear Clear Clear Clear
Millicandela Rating 5mcd 1.4mcd 7.5mcd 4.5mcd 3.5mcd
Lens Style Rectangle with Flat Top Rectangle with Flat Top Rectangle with Flat Top Rectangle with Flat Top Rectangle with Flat Top
Lens Size 2.50mm x 1.70mm 2.50mm x 1.70mm 2.50mm x 1.70mm 2.50mm x 1.70mm -
Voltage - Forward (Vf) (Typ) 2.1V 2.2V 2.2V 2.2V 2.05V
Current - Test 20mA 15mA 20mA 20mA 10mA
Viewing Angle - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Wavelength - Dominant - - - - -
Wavelength - Peak 630nm 700nm 565nm 590nm 630nm
Features - - - - -
Package / Case 2-SMD, Gull Wing 2-SMD, Gull Wing 2-SMD, Gull Wing 2-SMD, J-Lead 2-SMD, J-Lead
Supplier Device Package 2-SMD GW Type LED 2-SMD 2-SMD 2-SMD
Size / Dimension 3.00mm L x 2.00mm W 3.00mm L x 2.20mm W 3.00mm L x 2.00mm W 3.00mm L x 2.00mm W 3.00mm L x 2.00mm W
Height (Max) 1.80mm 1.80mm 1.80mm 1.80mm 1.40mm
