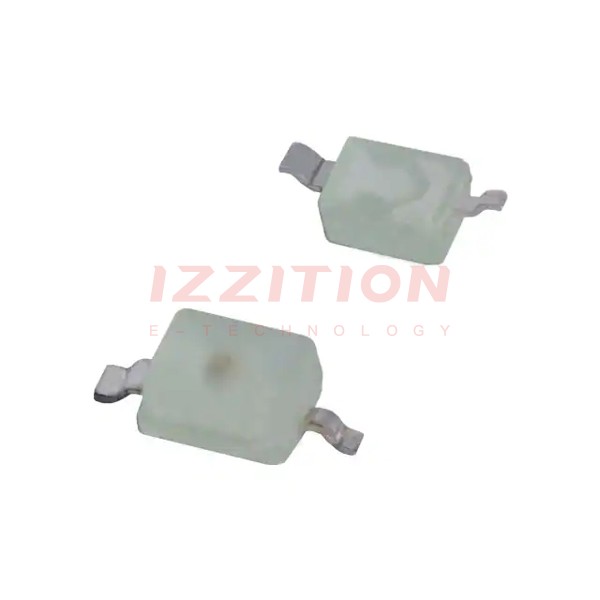

| Part Number | LN1371GTRP | LN1371SGTRP | LN1371GTR |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Green | Green | Green |
| Configuration | Standard | Standard | Standard |
| Lens Color | Green | Green | Green |
| Lens Transparency | Diffused | Diffused | Diffused |
| Millicandela Rating | 2.6mcd | 2mcd | 2.6mcd |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Size | 1.70mm x 1.25mm | 1.70mm x 1.25mm | 1.70mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.03V | 1.9V | 2.03V |
| Current - Test | 10mA | 5mA | 10mA |
| Viewing Angle | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 565nm | 565nm | 565nm |
| Features | - | - | - |
| Package / Case | 2-SMD, Gull Wing | 2-SMD, Gull Wing | 2-SMD, Gull Wing |
| Supplier Device Package | S-GW Type LED | S-GW Type LED | S-GW Type LED |
| Size / Dimension | 1.70mm L x 1.25mm W | 1.70mm L x 1.25mm W | 1.70mm L x 1.25mm W |
| Height (Max) | 1.10mm | 1.10mm | 1.10mm |
