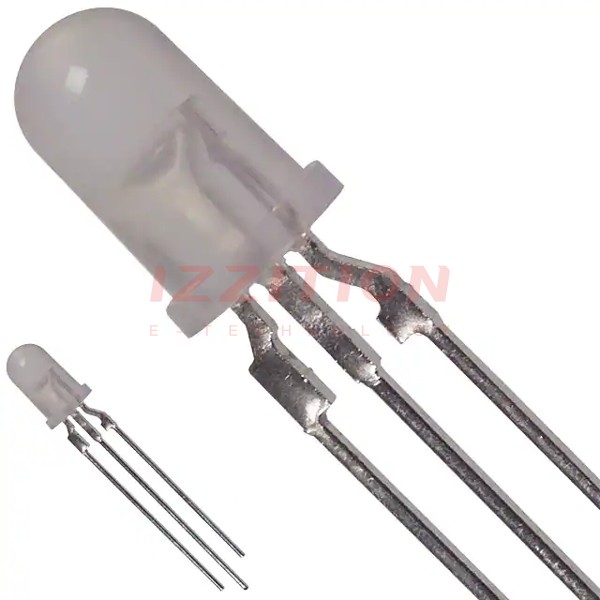

| Part Number | LN11WP34 | LN11WP38 | LN11WP24 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Color | Amber, Green | Green, Orange | - |
| Configuration | Common Cathode | Common Cathode | - |
| Lens Color | White | - | - |
| Lens Transparency | Diffused | - | - |
| Millicandela Rating | 10mcd Amber, 15mcd Green | 15mcd Green, 15mcd Orange | - |
| Lens Style | Round with Domed Top | Round with Domed Top | - |
| Lens Size | 5mm, T-1 3/4 | 5mm, T-1 3/4 | - |
| Voltage - Forward (Vf) (Typ) | 2.2V Amber, 2.2V Green | 2.2V Green, 2.1V Orange | - |
| Current - Test | 20mA Amber, 20mA Green | 20mA Green, 20mA Orange | - |
| Viewing Angle | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Wavelength - Dominant | - | - | - |
| Wavelength - Peak | 590nm Amber, 565nm Green | 565nm Green, 630nm Orange | - |
| Features | - | - | - |
| Package / Case | Radial - 3 Leads | Radial - 3 Leads | Radial - 3 Leads |
| Supplier Device Package | 5mm Round | 5mm Round | 5mm Round |
| Size / Dimension | - | - | - |
| Height (Max) | 13.30mm | 13.30mm | - |
