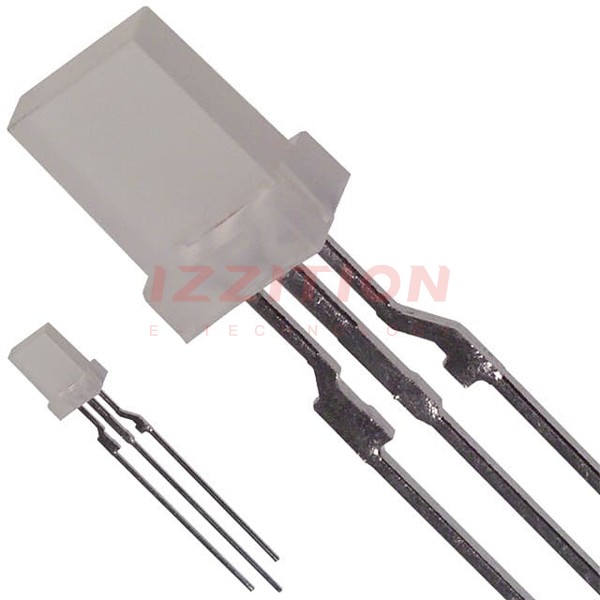

| Part Number | LN117WP23 | LN11WP23 |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Color | Green, Red | Green, Red |
| Configuration | Common Cathode | Common Cathode |
| Lens Color | White | - |
| Lens Transparency | Diffused | - |
| Millicandela Rating | 4.5mcd Green, 0.6mcd Red | 15mcd Green, 3mcd Red |
| Lens Style | Rectangle with Flat Top | Round with Domed Top |
| Lens Size | 5.30mm x 1.80mm | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.2V Red | 2.2V Green, 2.2V Red |
| Current - Test | 20mA Green, 15mA Red | 20mA Green, 20mA Red |
| Viewing Angle | - | - |
| Mounting Type | Through Hole | Through Hole |
| Wavelength - Dominant | - | - |
| Wavelength - Peak | 565nm Green, 700nm Red | 565nm Green, 700nm Red |
| Features | - | - |
| Package / Case | Radial - 3 Leads | Radial - 3 Leads |
| Supplier Device Package | Square Type LED | 5mm Round |
| Size / Dimension | - | - |
| Height (Max) | 14.40mm | 13.30mm |
