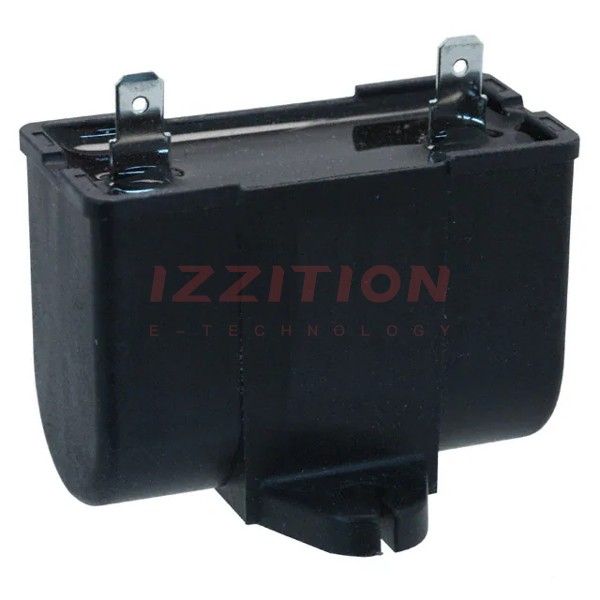

| Part Number | JS251106-BA | JS251156-BA | JS251126-BA |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 10 µF | 15 µF | 12 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V | 250V |
| Voltage Rating - DC | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.957" L x 0.945" W (49.70mm x 24.00mm) | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.969" L x 1.051" W (50.00mm x 26.70mm) |
| Height - Seated (Max) | 1.378" (35.00mm) | 1.654" (42.00mm) | 1.516" (38.50mm) |
| Termination | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) |
| Lead Spacing | - | - | - |
| Applications | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - |
| Features | - | - | - |
