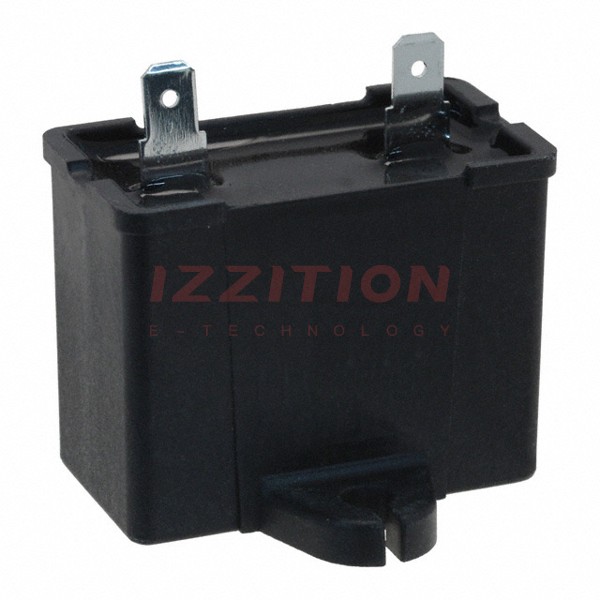

| Part Number | JS181106-AA | JS181126-AA | JS181206-AA | JS181156-AA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 10 µF | 12 µF | 20 µF | 15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 180V | 180V | 180V | 180V |
| Voltage Rating - DC | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.555" L x 0.866" W (39.50mm x 22.00mm) | 1.555" L x 0.866" W (39.50mm x 22.00mm) | 1.555" L x 1.051" W (39.50mm x 26.70mm) | 1.555" L x 1.051" W (39.50mm x 26.70mm) |
| Height - Seated (Max) | 1.220" (31.00mm) | 1.280" (32.50mm) | 1.634" (41.50mm) | 1.280" (32.50mm) |
| Termination | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) |
| Lead Spacing | - | - | - | - |
| Applications | Motor Run | Motor Run | Motor Run | Motor Run |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
