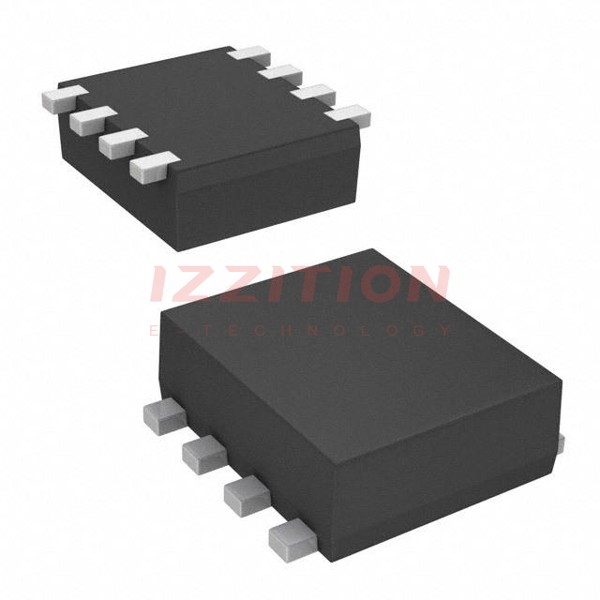

| Part Number | FK8V03060L | FK8V03020L | FK8V03030L | FK8V03040L | FK8V03050L |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 33 V | 33 V | 33 V | 33 V | 33 V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Ta) | 14A (Ta) | 12A (Ta) | 10A (Ta) | 8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 3.3A, 10V | 4.6mOhm @ 7A, 10V | 7mOhm @ 6A, 10V | 10mOhm @ 5A, 10V | 15mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 0.48mA | 3V @ 2.2mA | 2.5V @ 1.73mA | 2.5V @ 1.12mA | 2.5V @ 730µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.8 nC @ 4.5 V | 14 nC @ 4.5 V | 10.2 nC @ 4.5 V | 7.2 nC @ 4.5 V | 5.1 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±10V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 360 pF @ 10 V | 1500 pF @ 10 V | 1100 pF @ 10 V | 750 pF @ 10 V | 520 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 1W (Ta) | 1W (Ta) | 1W (Ta) | 1W (Ta) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | WMini8-F1 | WMini8-F1 | WMini8-F1 | WMini8-F1 | WMini8-F1 |
| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
