Panasonic Electronic Components-FK3P02110L - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	24 V
Current - Continuous Drain (Id) @ 25°C:	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V
Rds On (Max) @ Id, Vgs:	20mOhm @ 3A, 2.5V
Vgs(th) (Max) @ Id:	1.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	1500 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	3-PMCP
Package / Case:	3-SMD, Non-Standard

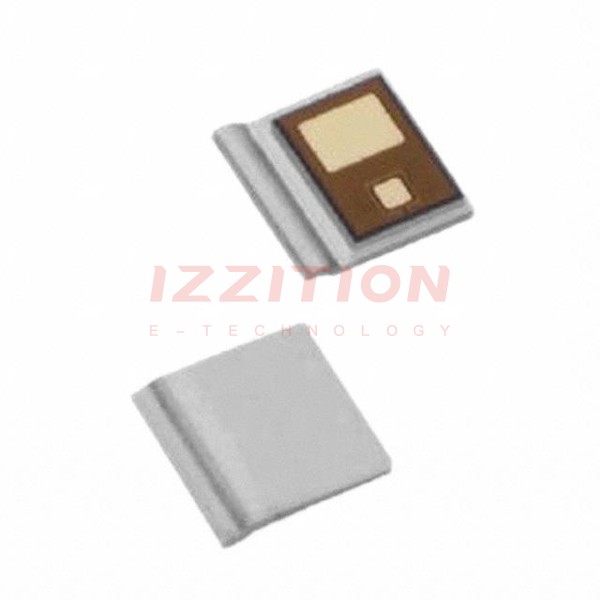

Panasonic Electronic Components FK3P02110L
