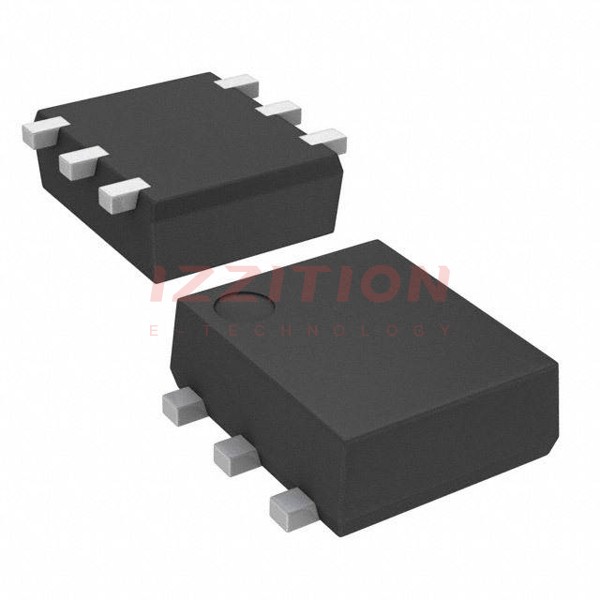

Panasonic Electronic Components-FJ6K01010L - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	34mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	1400 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	700mW (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	WSMini6-F1-B
Package / Case:	6-SMD, Flat Leads

Panasonic Electronic Components FJ6K01010L
