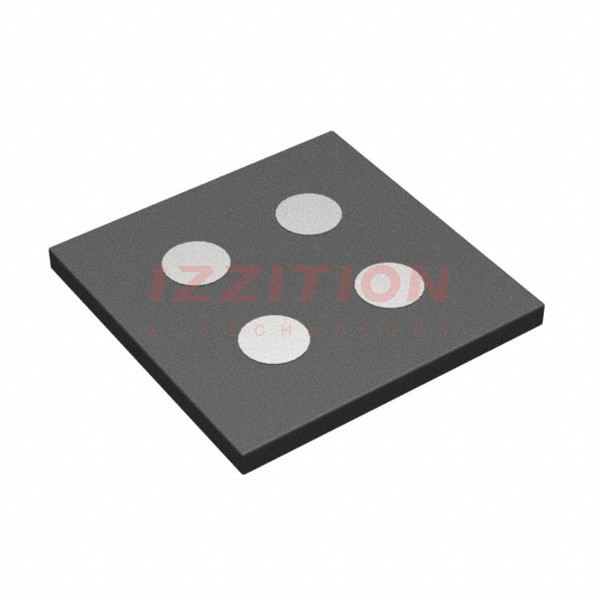

| Part Number | FJ4B01110L1 | FJ4B01120L1 | FK4B01110L1 | FJ4B01100L1 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Ta) | 2.6A (Ta) | 2.3A (Ta) | 2.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.5V, 4.5V | 1.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 153mOhm @ 700mA, 4.5V | 51mOhm @ 2A, 4.5V | 64mOhm @ 1.5A, 4.5V | 74mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 598µA | 1V @ 2mA | 1V @ 118µA | 1V @ 1.2mA |
| Gate Charge (Qg) (Max) @ Vgs | 3.3 nC @ 4.5 V | 10.7 nC @ 4.5 V | 2.55 nC @ 4.5 V | 7 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 226 pF @ 10 V | 814 pF @ 10 V | 274 pF @ 10 V | 459 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 340mW (Ta) | 370mW (Ta) | 340mW (Ta) | 360mW (Ta) |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | ALGA004-W-0606-RA01 | ULGA004-W-1010-RA01 | ALGA004-W-0606-RA01 | XLGA004-W-0808-RA01 |
| Package / Case | 4-XFLGA, CSP | 4-XFLGA, CSP | 4-XFLGA, CSP | 4-XFLGA, CSP |
