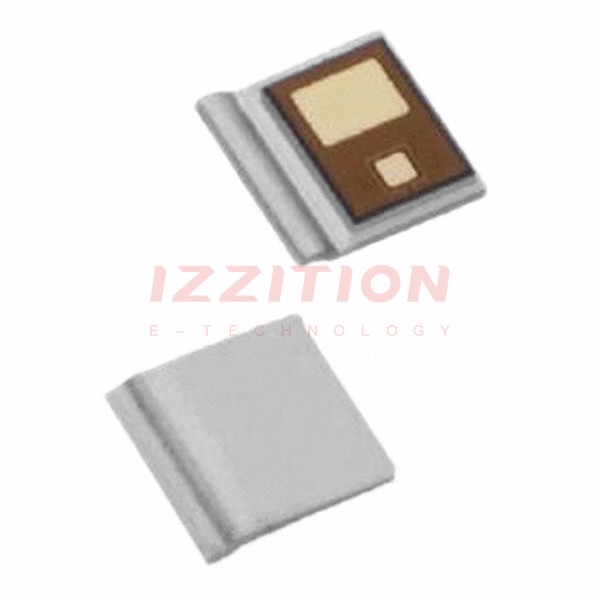

Panasonic Electronic Components-FJ3P02100L - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2V, 4.5V
Rds On (Max) @ Id, Vgs:	12.5mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id:	1.05V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	3000 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	3-PMCP
Package / Case:	3-SMD, Non-Standard

Panasonic Electronic Components FJ3P02100L
