| Part Number | FC6546010R | FC6946010R |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V | 60V |
| Current - Continuous Drain (Id) @ 25°C | 100mA | 100mA |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 10mA, 4V | 12Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 1.5V @ 1µA | 1.5V @ 1µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 12pF @ 3V | 12pF @ 3V |
| Power - Max | 150mW | 125mW |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

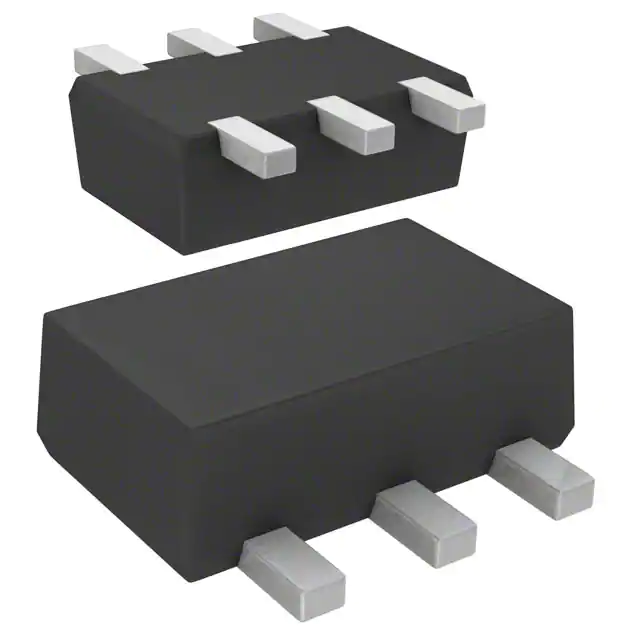

| Package / Case | 6-SMD, Flat Leads | SOT-563, SOT-666 |
| Supplier Device Package | SMini6-F3-B | SSMini6-F3-B |
