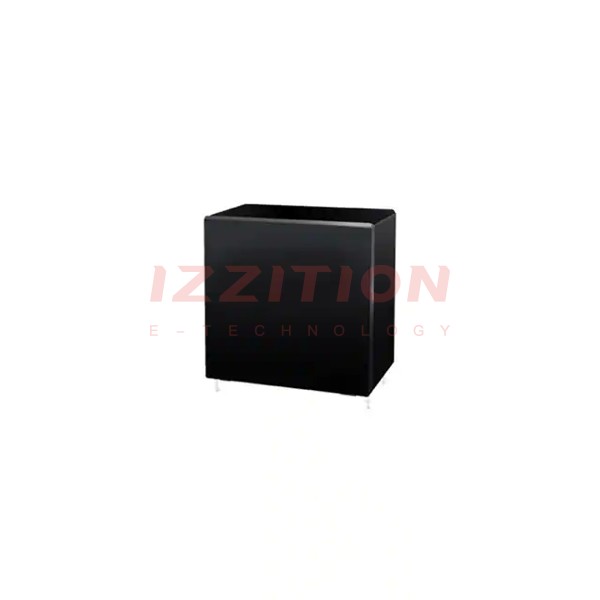

| Part Number | EZP-V80905LTU | EZP-V80905LTA | EZP-V80905LTB | EZP-V80905LTT |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 9 µF | 9 µF | 9 µF | 9 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 800V | 800V | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 12.6 mOhms | 12.6 mOhms | 15.6 mOhms | 15.6 mOhms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.614" L x 0.669" W (41.00mm x 17.00mm) |
| Height - Seated (Max) | 1.673" (42.50mm) | 1.673" (42.50mm) | 1.398" (35.50mm) | 1.398" (35.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering | DC Link, DC Filtering | Automotive; DC Link, DC Filtering | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 | - | AEC-Q200 | AEC-Q200 |
| Features | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR |
