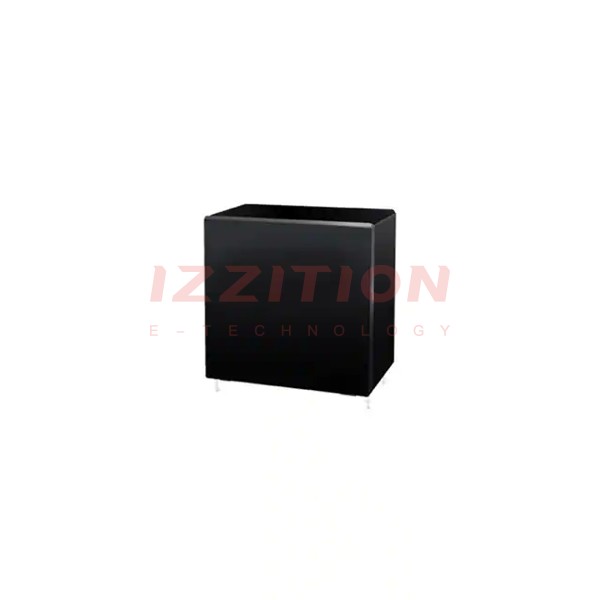

| Part Number | EZP-V80116LTA | EZP-V80126LTA | EZP-V80116LTU | EZP-V80136LTA | EZP-V80146LTA | EZP-V80186LTA | EZP-V80106LTA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 11 µF | 12 µF | 11 µF | 13 µF | 14 µF | 18 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - | - | - |
| Voltage Rating - DC | 800V | 800V | 800V | 800V | 800V | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 10.6 mOhms | 9.9 mOhms | 10.6 mOhms | 9.2 mOhms | 8.7 mOhms | 7.8 mOhms | 11.5 mOhms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.220" L x 1.024" W (31.00mm x 26.00mm) | 1.220" L x 1.024" W (31.00mm x 26.00mm) | 1.220" L x 0.866" W (31.00mm x 22.00mm) | 1.220" L x 0.807" W (31.00mm x 20.50mm) |
| Height - Seated (Max) | 1.673" (42.50mm) | 1.673" (42.50mm) | 1.673" (42.50mm) | 1.654" (42.00mm) | 1.654" (42.00mm) | 2.146" (54.50mm) | 1.673" (42.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering | Automotive; DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - | AEC-Q200 | - | - | - | - |
| Features | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR | Long Life, Low ESR |
